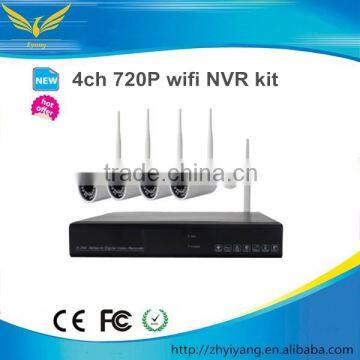

wireless security cameras 4ch 720P wifi security ip camera NVR kit
USD $1 - $239
/ Set
1 Set(Min.Order)
- 10000 Set / Sets per Month
- zhuhai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2016 surveillance wifi Video Recorder Onvif 1080p Full HD P2P CCTV NVR
-
2016 new products 8ch P2P 1080P hdmi NVR
-
Full HD 1080P CCTV NVR 24ch H.264 HDMI Network Video Recorder P2P standalone NVR
-
standalone 16ch P2P 960P h.265 NVR
-
2016 8ch P2P hdmi NVR 1080P
-
2016 cheap 4ch P2P 1080P wifi standalone NVR
Product Details
| Place of Origin | Guangdong, China | Brand Name | OEM | |
| Model Number | KW9N4-CNB66W | Type | IP Camera | |
| Style | Bullet Camera | Sensor | CMOS | |
| Technology | NetWork | Special Features | Waterproof / Weatherproof |
Product Description
wireless video camera
Product Description
security camera system:
| WIFI NVR | ||
| System | Main Processor | High performance embedded microprocessor |
| Operating system | Embedded LINUX OS | |
| Video spec. | Video compression format | H.264 |
| Display Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Playback Image Resolution | 720P@30fps;960P@30fps;1080P@30fps | |
| Motion Detection | can setup 192(16×12)pcs motion detection area each channeland multi-level sensitivity(1-6 levels adjustable) | |
| Privacy Masking | depends on ipc | |
| Audio spec. | Audio compression format | adpcm |
| two-way audio | 1ch | |
| Recording | Recording Mode | Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
| Recording storage | HDD,Network | |
| Frame rate | 30 fps NTSC;25fps PAL | |
| Recording Playback | Max suport 4ch 720P | |
| Backup Mode | Support HDD,USB Flash Disk store & backup | |
| Video | Network Video Input | 4ch |
| Video output | 1ch VGA and 1ch HDMI | |
| Audio | Audio Input | N/A |
| Audio Output | N/A | |
| Alarm | Alarm Input | N/A |
| Alarm Output | N/A | |
| Other | Network | 1x10/100Mbps,RJ45 port |
| RS485 | Standard 485 port,support half-duplex, green terminal port | |
| USB | 2 USB 2.0 ports | |
| HDD | support 1 3TB SATA HDD inside | |
| Power | DC +12V /4A | |
| power consumption | 16W-18W(not include HDD and PoE) | |
| Operation temperature | 0℃-+55℃ | |
| Operation humidity | 10%-90% | |
| Demension | 252*213*42mm(0.8u hight) | |
| Weight | 1.5--1.8KG(not include HDD) | |
| IP CAMERA | ||
| Device Type | 720P OV9712d CMOS sensor | |
| Lens Size | 1/4 | |
| Day and Night | Yes | |
| Min.Scene Illumination | 0.5lux(IR ON) | |
| Infrared sensitivity | Support | |
| IR Filter | IR-CUT | |
| IR-led lamp | 36pcs | |
| IR distance | 30M | |
| Electronic shutter | 1/5-1/15,000 /S | |
| Lens | 3.6MM | |
| Focus | Fixed | |
| Aperture | Fixed Aperture F1.2 | |
| Compression | H.264 Main Profile | |
| Picture Resolution | 1280*720@25ps | |
| Steam flow | Support dual stream | |
| Bit Rate | 128-8192kbps | |
| Bit Rate Type | CBR/VBR | |
| S/N Ratio | >50DB | |
| Image enhancement | Auto White Balance,Backlight compensation,Brightness,Contrast,Saturation adjusted | |
| Subtitles input | Support channel name, date/time | |
| Flip Config | Up/down, Left/right | |
| Audio | Support the microphone input andAudio output, support two-way voice intercom equipment | |
| equipment | An external audio equipment | |
| Audio input/ output | one channel audio input, one channel audio output | |
| Audio Compression | G.711/G.726 | |
| Alarm input/output | No | |
| Alarm way | Motion Detection:Configure motion detection area,detecting sensitivity is adjustable | |
| Alarm processing | The control center to monitor,Go to PTZ preset pos,Send E-mail, Log record,SD card storage etc. | |
| Protocal | HTTP,TCP/IP,UDP,SMTP,DDNS,DNS,SNTP,DHCP,FTP,RTP,RTSP,UPNP,ONVIF,28181 | |
| Ethernet | Ethernet (10/100 Base-T),RJ-45 connector | |
| Safety | IP address filtering,User level password protection,The user access log | |
| Wifi major chipset | MTK7601 | |
| Wifi protocol | 802.11b/n/g | |
| Frequency Range | 2.4~2.4835GHz | |
| Encryption | WEP, WPA/WPA2 | |
| WEB Browser | Microsoft Internet Explorer 6.0 and above,google,firefox etc. | |
| Mobile Phone | Support iPhone,Android,Bit rate:32K – 512K adjustable,Frame rate:6–12 fps | |
| Software Management | CMS and the devices Compatible with ONVIF | |
| Software intelligence function | Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. | |
| Event action | Files are stored to the back end equipment,Send E-mail,Zoom in alarm, | |
| Remote Access | DDNS,Software,P2P | |
| Accessories | Power adapter, CD, Screw bag | |
| Power Comsumption | DC 12V ,Module power consumption is less than 2 W | |
| Temperature | -20°~60°C | |
| Humidity | -10~85% | |
| Certification | CE ,FCC | |
