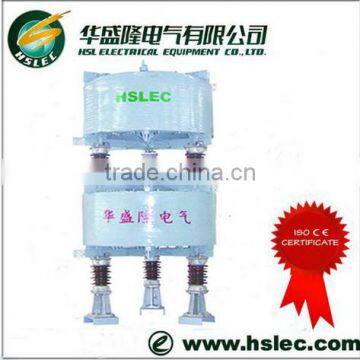

BKGKL series high voltage dry type air core shunt reactor with price

Product Introduction of BKGKL series high voltage dry type air core shunt reactor

 BKGKL series dry type air core shunt reactor is mainly used for stopping higher frequency voltage caused by capacitance effects under the long circuits of no-load or light-load

The basic order data of BKGKL series dry type air core shunt reactor

1.System rated voltage and frequency

2.Reactor long term working current

3.Reactor rated reactance or reactance ratio

4.Reactor Install method

5.Reactor Incoming and outgoing line angle

6.other special requirement

Technical parameters of BKGKL series dry type air core shunt reactor

1.System Voltage (kV)

2.Frequency (Hz)
3.Basic Impulse Level (kV)
4.Reactance/Inductance (Ohms/Microhenries)
5.Continuous Current (A)
6.Short Circuit Levels (kA) - Time Duration (Sec)
7.Fundamental/Harmonic FrequencyLevels(Hz)
8.Q Required for Filter Reactors
9.Insulators supplied or not supplied and TR No. or type to be used
10.Vertical or Horizontal Mounting
11.Three phase side by side or vertical stack mounting
12.Terminal configuration
13.Dimensional Limitations
14.Number of Units

Features  of  BKGKL series dry type air core shunt reactor

 1 To Add Line Impendence.

 2 To Provide Some Light Buffering Against Low Magnitude Line Spikes.

 3 To Reducing Harmonics.

 4 To Compensating For A Low Inductance Motor.

 5 Only As Part Of A Filter For Reflected Wave Reduction

Routine Tests

1. Measurement of winding resistance

2. Measurement of voltage ratio and check of phase displacement

3. Measurement of short-circuit impedance and load loss

4. Measurement of no-load loss and current.

5. Dielectric routine tests.

Service Conditions

 1. Service Site: Indoor Or Outdoor

 2. Ambient Temp.:-5~40 Degree( Or According To Customer's Requirement)

 3. Altitude: <=1000m( If It Exceeding To 1000m, Pls Declare In Order).

 4. Max. Wind Speed: 35m/S

 5. Relative Humidity: <=90%

 6. Earthquake Resistant Capability: Horizontal Direction 0.3g Verticle Direction0.15g (Or By Customer's Requirements)
