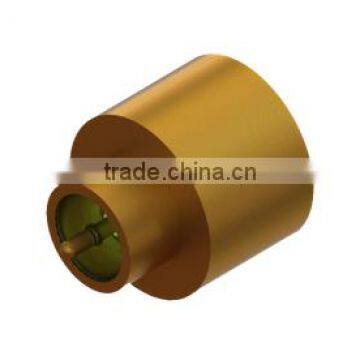

New SMP Male Solder-In Hermetic Connector (.015")
- HongKong
- Credit Card
You May Like
-
7/16 DIN Connector with Male Center Pin in Solder 1/2" cable,RF Connector
-
7/16 DIN Female Connector Solder Cup Terminal Solder Attachment 4 Hole Flange
-
7/16 DIN Male Connector Crimp/Solder Attachment For RG8 Cable
-
DIN 7/16 Male connector for 1/2 Flexible Cable
-
waterproof DIN 7/16 Female Connector
-
female rf coaxial SMC connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | SH-Link | |
| Model Number | SMP1211-6041 | Type | Other, SMP | |
| Application | RF | Gender | Male |
Product Description
| *Technical specifications are generic to the product series and are not part number specific. | ||||
| Electrical | ||||
| Impedance | 50Ω | |||
| Frequency | 40 GHz | |||
| VSWR | 1.15:1 to 26.5 GHz typ.; 1.5:1 to 40 GHz typ. | |||
| Insertion Loss | .06 √ f | |||
| Shielding Effectiveness | ≥ -80 dB DC - 3 GHz; ≥ -65 dB 3 - 26.5 GHz | |||
| Dielectric Withstanding Voltage | 500 VRMS | |||
| Mechanical | ||||
| Smooth Bore | Limited Detent | Full Detent | ||
| Mating Cycles | 1000 | 500 | 100 | |
| Force to Engage/Disengage | 3.0 / 0.5 lbs | 5.0 / 7.0 lbs | 7.0 / 9.0 lbs | |
| Axial Misalignment | .010” | |||
| Radial Misalignment | ± .010” | |||
| Environmental | ||||
| Temperature Rating | 65°C to +165°C | |||
| Corrosion | MIL-STD-202, Method 101, Condition B | |||
| Vibration | MIL-STD-202, Method 204, Condition D, 20 Gs | |||
| Shock | MIL-STD-202, Method 213, Condition I, 100 Gs | |||
| Thermal Shock | MIL-STD-202, Method 107. Cond. B, -65°C to +165°C | |||
| Barometric Pressure (Altitude) | MIL-STD-202, Method 105, Condition C, 70k Ft. | |||
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
