Home > Products > RF Connctors > RF SMA, Male, right angle coaxial cable connector

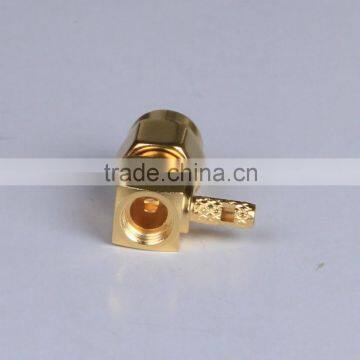

RF SMA, Male, right angle coaxial cable connector
US$ 0.1 - 1
/ Piece
100 Pieces(Min. Order)
- HK port
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SH-Link | |
| Model Number | SMA-C-JW1.5 | Type | SMA | |
| Application | RF | Gender | Male |
Product Description
Product Description
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |||
| Vibration | 98m/S²(10-2000Hz)10g | |||
| Impedance | 50Ω | |||
| Frequency range | DC-12.4GHz(Semi-Rigled Cable DC-18GHz) | |||
| Working voltage | 335V r.m.s at sea level | |||
| Withstanding voltage | 1000V r.m.s at sea level | |||
| Contact resistance | ||||
| Center contact | ≤3mΩ | |||
| Outer contact | ≤2.5mΩ | |||
| Insulation resistance | ≥5000MΩ | |||
| Center conductor retention force | ≥0.28N | |||
| Coupling nut retention force | ≥180N | |||
| Insertion loss | ≤0.15dB/6GHz | |||
| Voltage Standing Wave Ratio | ||||
| Straight flexible cable | ≤1.10+0.02f | |||
| semi-rigid cable | ≤1.07+0.018f | |||
| Right angle flexible cable | ≤1.20+0.03f | |||
| semi-rigid cable | ≤1.17+0.02f | |||
| Durability(mating) | ≥500(Cycles) | |||
