GZK-C Automatic Carton Box Slotting Machine
- Shanghai
- T/T
You May Like
Product Details
| Condition | New | Application | Other, Textiles, Machinery & Hardware, Textiles | |
| Packaging Type | Cartons | Packaging Material | Paper | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V/380V | Power | 7.5KW | |
| Place of Origin | Shanghai, China | Brand Name | Qisheng | |
| Model Number | GZK-C | Weight | 4500kg | |
| Dimension(L*W*H) | 3900*2450*2400mm | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Automatic carton box slotting machine>Adsorption type
>Creasing accurately

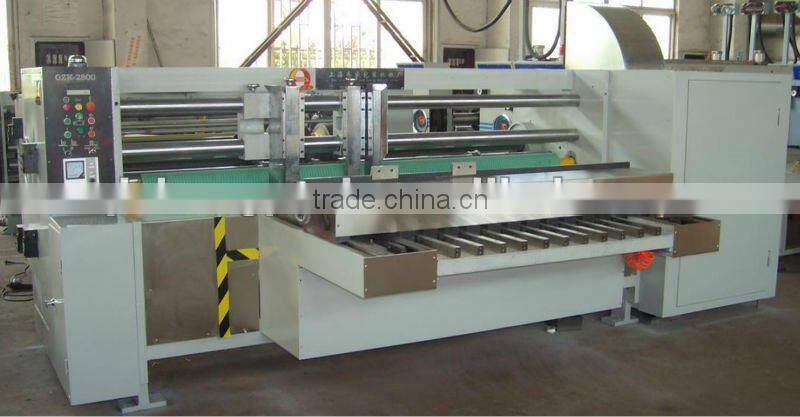

GZK-C Automatic carton box slotting machine
Features:
1) The advanced negative pressure absorption system is equipped for feeding sheet. Suction volume is adjustable, which makes uneven sheets feed smoothly
2) Slitting, creasing, slotting and flap cutting can be finished in one single passage
3) Creasing accurately
4) Hole making device is optional
The machine is manufactured with the aims to meet the tough operation requirement, reliable ,good function and safe, Hence ,standard parts ,fast set-up and easy to operate are our advantages
Best material and part are used
Transmission gear are hardened and ground (hardness>60HRC)
Automatic zero setting and return to the pre-set position after open
Chrome plated shafts
The machine is also equipped with an automatic lubricating system that keeps the lubricant levels in each unit uniform at all times
PLC with multifunction touch screen control
Modal | GYK--C-1200*2800 | GYK--C-1400*2800 | GYK--C-1600*3000 |
Color | Two-color | Two-color | Two-color |
Max production speed(page/min) | 140 | 120 | 110 |
Max feeding size (mm) | 1200*2500 | 1400*2500 | 1600*2700 |
Skip feeding(mm) | 1400* 2500 | 1600* 2500 | 1800* 2700 |
Min. feeding size(mm) | 350*650 | 400*650 | 450*650 |
Max. printing size(mm) | 1150*2400 | 1350*2400 | 1550*2600 |
Suitable paperboard thickness(mm) | 2-12 | 2-12 | 2-12 |
Minimum grooving height(MM) | 100 | 100 | 100 |
Maximum grooving depth | 0-300 | 0-350 | 0-400 |
Standard printing plate thickness(mm) | 7 | 7 | 7 |
Axial drifting of plate roller(mm) | ±10 | ±10 | ±10 |
Minimal slotting opens a spur (MM) )Set a knife right (long * width of long * width *) Oppose a knife (long * width of long * width *) |
160*160*160*160 |
170*170*170*170 |
180*180*180*180 |
| 250*60*250*60 | 260*60*260*60 | 270*60*270*60 |
Power of main motor(kw) | 22 | 30 | 35 |
Overall power (kw) | 30 | 40 | 45 |
