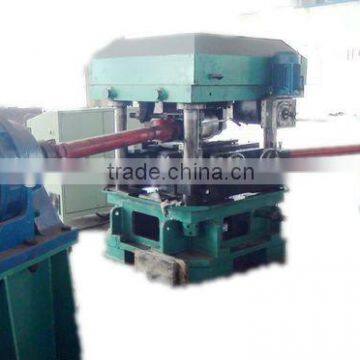

China Round Straightener

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, straightening machine
Use	Other, bar straightening	Place of Origin	Shandong, China
Brand Name	haige	Model Number	JY60
Voltage	380V	Power(W)	70KW
Dimension(LWH)	16mX3.6mX1.7m	Weight	12.0 MT
Certification	ISO9001	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

china round straightener

Specification		JY60
Raw Material	Diameter Range(mm) (excluding drawingmaterial)	Tensile Strength σ_b≤450(M pa)		Φ15≤d≤Φ60(L ≥2000)
		Tensile Strength σ_b≤1000(M pa)		Φ15≤d≤Φ58(L ≥2000)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	≤3
	Diameter Tolerance	Bright Steel ≤IT10
	Circular Degree	d≤50	≤50% of diameter tolerance
		50<d≤60	≤65% of diameter tolerance
	Diameter Range(mm) (excluding drawingmaterial)	≤3.2mm~6.3mm
Finished Products	Straightness(mm/m)	Bright Steel≤0.30
	Diameter Tolerance	Bright Steel≤IT8
	Surface Roughness(Ra)	Bright Steel≤0.8μm
Roller Quantity (Pcs)		2
Roller Diameter(mm)		Φ260
Straightening Feeding Speed(m/min)		2.5~12
Main Machine Motor Power (KW)		30 X 2
Lifting Motor Power(KW)		3.0
Outline Dimensions (LengthWidthHeight) (for your reference)		Main Machine 6.6mX2.3mX1.7m Full Set(including auxiliary machine) 16mX3.6mX1.7m
Weight (for your reference)		Main Machine 8.0 T Full Set (including auxiliary machine) 12.0 T
Total Capacity(for your reference)		70
Compressed Air Source(user prepare by themselves)		0.5~0.8MPa,3m³/min,twp-stage oil-water separator

Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
