automatic straightener for round steel bars

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Straightener Feeder & Uncoiler
Use	Bar	Place of Origin	Shandong, China
Brand Name	Haige	Model Number	JY80
Voltage	380v/440v	Power(W)	100kw
Dimension(LWH)	15.8mx5.5mx3.0m	Weight	26t
Certification	iso9001	Warranty	one year
After-sales Service Provided	Overseas service center available

automatic straightener for round steel bars

Specification		JY80
Raw Material	Diameter Range(mm) (excluding drawingmaterial)	Tensile Strength σ_b≤450(M pa)		Φ20≤d≤Φ80(L ≥2000)
		Tensile Strength σ_b≤1000(M pa)		Φ20≤d≤Φ75(L ≥2000)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	Bright Steel ≤3
	Diameter Tolerance	Bright Steel≤IT10
	Circular Degree	d≤50	≤50% of diameter tolerance
		50<d≤80	≤65% of diameter tolerance
		d>80	≤70% of diameter tolerance
	Surface Roughness(Ra)	Bright Steel≤3.2mm~6.3mm
Finished Products	Straightness(mm/m)	Bright Steel≤0.40
	Diameter Tolerance	Bright Steel≤IT8
	Surface Roughness(Ra)	Bright Steel≤0.8μm
Roller Quantity (Pcs)		2
Roller Diameter (mm)		Φ335
Straightening Feeding Speed (m/min)		2~14
Main Machine Motor Power (KW)		45 X 2
Lifting Motor Power (KW)		3
Outline Dimensions (LengthWidthHeight) (for your reference)		Main Machine 8.7mX3.3mX3.2m Full Set(including auxiliary machine)15.8mX5.5mX3.0m
Weight (for your reference)		Main Machine 20.0 T Full Set(including auxiliary machine) 26.0 T
Total Capacity(for your reference) (KW)		100
Compressed Air Source(user prepare by themselves)		0.5~0.8MPa,3m³/min,two-stage oil-waterseparator

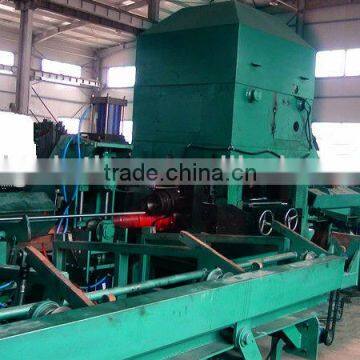

automatic straightener
