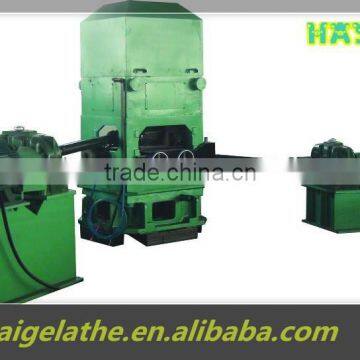

CNC Two Rolls Straightening Machine for Metal Bar
- QINGDAO PORT
- T/T
You May Like
Product Details
| Condition | New | Type | Other, Straightener Feeder & Uncoiler | |
| Use | Bar | Place of Origin | Shandong, China | |
| Brand Name | HAIGE | Model Number | JY80 | |
| Voltage | 380v/440v | Power(W) | 100kw | |
| Dimension(L*W*H) | 15.8mx5.5mx3.0m | Weight | 26t | |
| Certification | iso9001 | Warranty | one year | |
| After-sales Service Provided | Overseas service center available |
Product Description
It is mainly used for straightening and calendering various metal bar after peeling or grinding.It is also used in the rough pre-straightening for the black bars with the hydraulic protection devices.
The special curve between the upper concave and the lower convex of the two straightening rolls can easily realiize calendering while straightening.
Two-rolls Straightening Machine includes four-pillar structure, four-beams structure,prestressed structure and frame structure as follows.
Main parameters of JY80
straightener machine Specification | JY80 | |||||
Raw
Material
| Diameter Range(mm) (excluding drawingmaterial) | Tensile Strength σb≤450(M pa) | Φ20≤d≤Φ80(L ≥2000) | |||
Tensile Strength σb≤1000(M pa) | Φ20≤d≤Φ75(L ≥2000) | |||||
Surface Hardness | ≤HB380(≤HRC42) | |||||
Straightness(mm/m) | Bright Steel ≤3 | |||||
Diameter Tolerance | Bright Steel≤IT10 | |||||
Circular Degree | d≤50 | ≤50% of diameter tolerance | ||||
50<d≤80 | ≤65% of diameter tolerance | |||||
d>80 | ≤70% of diameter tolerance | |||||
Surface Roughness(Ra) | Bright Steel≤3.2mm~6.3mm | |||||
Finished
Products
| Straightness(mm/m) | Bright Steel≤0.40 | ||||
Diameter Tolerance | Bright Steel≤IT8 | |||||
Surface Roughness(Ra) | Bright Steel≤0.8μm | |||||
Roller Quantity (Pcs) | 2 | |||||
Roller Diameter (mm) | Φ335 | |||||
Straightening Feeding Speed (m/min) | 2~14 | |||||
Main Machine Motor Power (KW) | 45 X 2 | |||||
Lifting Motor Power (KW) | 3 | |||||
Outline Dimensions (Length*Width*Height) (for your reference) | Main Machine 8.7mX3.3mX3.2m Full Set(including auxiliary machine)15.8mX5.5mX3.0m | |||||
Weight (for your reference) | Main Machine 20.0 T Full Set(including auxiliary machine) 26.0 T | |||||
Total Capacity(for your reference) (KW) | 100 | |||||
Compressed Air Source(user prepare by themselves) | 0.5~0.8MPa,3m3/min,two-stage oil-waterseparator
| |||||
Our Customers:
A. 12 months Warranty period.
B. 24 hours welcome to your enquiry.
C.Customized design is available. OEM& ODM are approved.
D.overseas installation,commssioning,training,etc.
E.Special discount can be provided to our distributor.
