Home > Products > Steel bar straightening machine > Chinese Two Rolls Vertical Straightening Machine Manufacturer for Metal Steel Plain Round Bar Sale

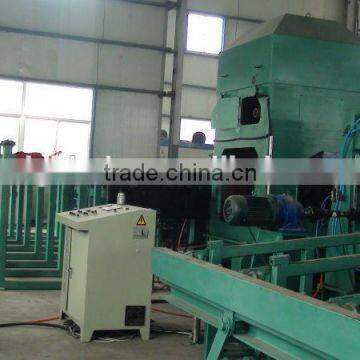

Chinese Two Rolls Vertical Straightening Machine Manufacturer for Metal Steel Plain Round Bar Sale
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao seaport
- T/T
You May Like
-
Vertical Two Rolls Steel Rod Straightening Machine Professional Manufacturer
-
ASTM 304 316 304 Stainless Steel Round Bar Rod Two Rollers Vertical Straightening Machine
-
GCr9 Bearing Steel Bar Rod Two Rollers Straightening Machine
-
Martensitic Stainless Steel Bar Two Rollers Straightening Machine
-
GCr9 Bearing Steel Bar Rod Two Rollers Straightening Machine
-
China Two Rollers Precision Straightening Machine Four Round Steel Bar
Product Details
Condition | New | Type | Other, metal steel plain round bar straightening machinery | |
Use | Bar | Place of Origin | Shandong, China | |
Brand Name | Haige | Model Number | JY80A | |
Voltage | 380V/440V | Power(W) | 100KW | |
Dimension(L*W*H) | 7.1X2.8X3.0m | Weight | 18.5t | |
Certification | ISO9001 | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
straightening machine for round steel bar1. frame structure, more stable
2. high precision
3. Ra0.8um, straightness 0.4mm/m
two rolls vertical straightening machine for steel round plain bar
Main Technical Parameters | |||||
Specification | JY80A | ||||
Requirements | Diameter Range(mm) | 20≤dia≤80 | |||
Length(mm) | ≥2000 | ||||
Surface Hardness | ≤HB380(≤HRC42) | ||||
Yield Strength(Mpa) | σb≤450 | ||||
Straightness(mm/m) | ≤3 | ||||
Diameter Tolerance | ≤IT10 | ||||
Circular Degree | dia≤50 | ≤50% of diameter tolerance | |||
50<dia≤80 | ≤65% of diameter tolerance | ||||
dia>80 | ≤70% of diameter tolerance | ||||
Surface Roughness(Ra) | 3.2μm~6.3μm | ||||
After Straightening | Straightness(mm/m) | ≤0.40 | |||
Surface Roughness(Ra) | ≤0.8μm | ||||
Diameter Tolerance | ≤IT8 | ||||
Straightening speed (m/min) | 2~14 | ||||
Total Capacity(kw) | 100 | ||||
Outline Dimension(m) | 7.1X2.8X3.0 |
