OEM/ODM 7 Inch Reverse Camera System Rearview Camera System 4ucam Wireless Backup Camera for Vehicle
- 5000 Set / Sets per Month
- Guangzhou
- Credit Card PayPal
You May Like
-
Replace Car Interior Mirror Function 4.3inch High Resolution 2channles Universal Rear-view Car Mirror Monitor
-
Car Security Camere System 4.3inch HD 1080P Front View Car Interior Mirror With MINI Rear Camera Quality Choice
-
Front and Rear View Full HD 1080P 4.3inch Car Dvr Rearview Mirror With G-Sensor
-
2 Channles 4.3Inch Mirror Monitor Type Front And Rear View Car Surveillance Camera
-
4.3inch Reversing Camera System 2 channels HD 1080P Mirror Car Camera Recorder
-
2.4GHz Digital Wireless Reverse System Wireless Rear View Mirror Monitor Backup Camera
Product Details
Type | Other, Reverse Camera, Rearview Camera System | Voltage | Other, DC12v-32v | |
Power | 2W | Car Make | For All | |
Place of Origin | Guangdong, China | Brand Name | Shivision | |
Model Number | M02104CH-c0972AI | Warranty | 12 Months |
Product Description

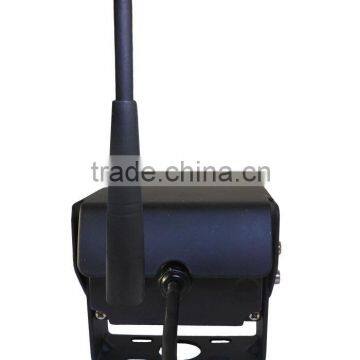

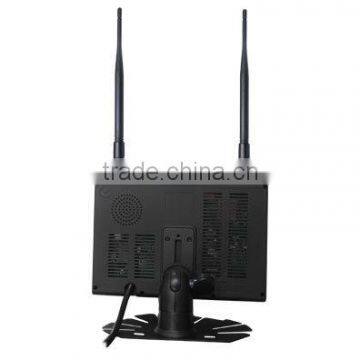

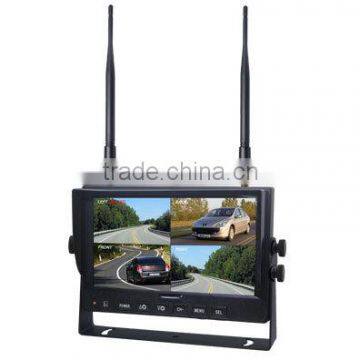

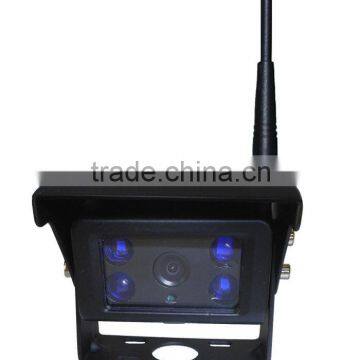

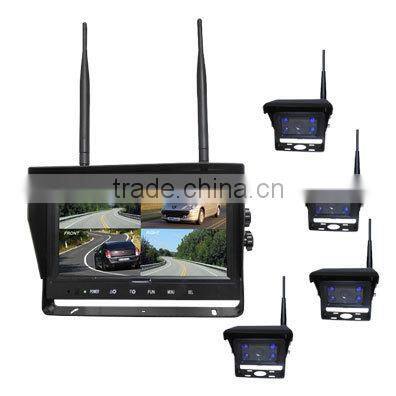

7 Inch Reverse Camera System Rearview Camera System 4ucam Wireless Backup Camera for Vehicle
Key Spec :
Monitor | Camera | ||
LCD size | 7" | Image Sensor | 1/3" CMOS CP8108 |
Resolution | 800 x 3 (RGB) x 480 | TV System | PAL / NTSC |
Contrast | 500:01:00 | Resolution | 700TVL |
Brightness | 400 cd/m² | Array Size | 752 (H) × 582 (V) |
Viewing Angle | U: 50 / D: 70, R/L: 70 | Sync. System | External/Internal |
Aspect Ratio | 16:09 | Minimum Illumination | 0Lux with IR On |
Channel | 4 channels | Emitting frequency | 17dBm |
Operating Frequency | 2400 - 2483.5 MHz | Transmitting distance | 120M |
Transmitting Distance | 120 M | Transmitting speed | 12Mbps |
Recieving Sensitivity | -89 dBm | Recieving sensitivity | -78dBm |
Decompression Form | MPEG4 | Scan Mode | Progressive |
Emitting Frequency | 17 dBm | Operating frequency | 2400 - 2483.5 MHz |
Modulation | 2.4G FSK/GFSK | Decompression form | MPEG4 |
SD Card | Support Max.128G | S/N Ratio | ≥50dB(AGC OFF) |
Time Delay | 120ms | Back Light Comp | ON/OFF |
System Format | PAL / NTSC | Microphone | Yes |
Power Consumption | Max. 6W | White Balance | AWB,ATW,MWB |
Loudspeaker | 1.5W/8 Ohm | BLC | Auto |
Operating Temperature | -20~+70ºC, RH 90% | D/N | D/N Auto Switch |
Storage Temperature | -30~+80℃, RH 90% | D/N switching time | 000~255 |
DNR | 2D/3D NR | ||
Motion detecion | Yes | ||
Digital image stabilizer | Yes | ||
Shutter Speed | PAL:1/50~1/100000/s; NTSC:1/60~1/100000/s | ||
Waterproof protection level | IP69K | ||
Current Consumption | max: 300mA | ||
Power Supply | DC 12 V--32V | ||
Operating Temperature | -20°C~70°C, RH 95% MAX. | ||
Storage Temperature | -40°C~80°C, RH 95% MAX. | ||
Lens | f = 2.5mm | ||
Lens Angle | 102° |
Related Producs :
Rechargeable battery powed cameras
9 Inch 2.4GHz Digital Wireless Camera System for Car
Shivision Co., Ltd. ,
located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
