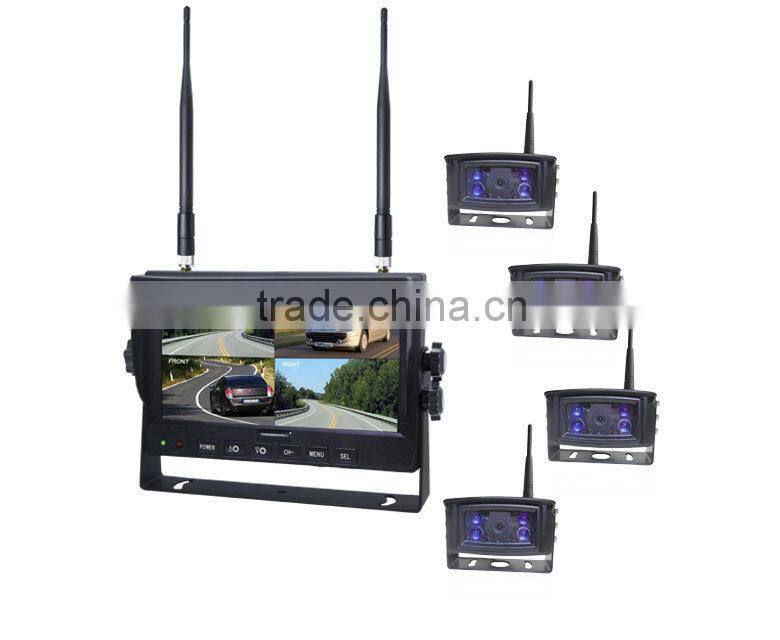

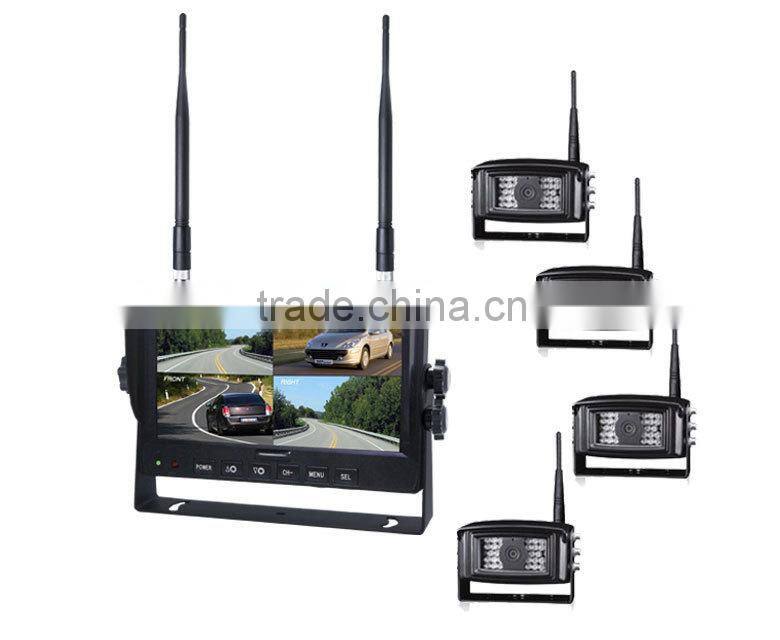

PAL or NTSC Adjustable High Resolution Quad 7 Inch TFT LCD Color Monitor With Sun Visor
- Guangzhou
- Credit Card PayPal
You May Like
-
HD 1080P 180 Lens Degree 43 Inch TFT Rear View Mirror Car Monitor
-
Truck Mounted IR LED Night Vision Analog Wired Reverse Camera With Monitor
-
7" Inch TFT LCD Rear View Mirror Monitor & 2.4GHz Wireless Camera Four-camera Wireless Set for Bus Track
-
7 Inch TFT LCD DC12-32 2.4G Digital Wireless Rearview Car Monitor
-
9 Inch TFT LCD Quad-view 2.4G Digital Wireless Rearview Car Monitor
-
High Quality Digital Screen Wired 3ch Mono View Rear View 7inch Monitor
Product Details
| Screen Size | Other, 7" | Screen Type | 16:9 | |
| Placement | Dashboard | Car Make | All | |
| Place of Origin | Guangdong, China | Brand Name | Shivision | |
| Model Number | M02104CH-C0972AI | Warranty | 12 Months |
Product Description
PAL or NTSC Adjustable High Resolution Quad 7 Inch TFT LCD Color Monitor with Sun Visor
Key Spec :
| Monitor | Camera | ||
| LCD size | 7" | Image Sensor | 1/3" CMOS CP8108 |
| Resolution | 800 x 3 (RGB) x 480 | TV System | PAL / NTSC |
| Contrast | 500:01:00 | Resolution | 800TVL |
| Brightness | 400 cd/m² | Array Size | 752 (H) × 582 (V) |
| Viewing Angle | U: 50 / D: 70, R/L: 70 | Sync. System | External/Internal |
| Aspect Ratio | 16:09 | Minimum Illumination | 0Lux with IR On |
| Channel | 4 channels | Emitting frequency | 17dBm |
| Operating Frequency | 2400 - 2483.5 MHz | Transmitting distance | 120M |
| Transmitting Distance | 120 M | Transmitting speed | 12Mbps |
| Recieving Sensitivity | -89 dBm | Recieving sensitivity | -78dBm |
| Decompression Form | MPEG4 | Scan Mode | Progressive |
| Emitting Frequency | 17 dBm | Operating frequency | 2400 - 2483.5 MHz |
| Modulation | 2.4G FSK/GFSK | Decompression form | MPEG4 |
| SD Card | Support Max.128G | S/N Ratio | ≥50dB(AGC OFF) |
| Time Delay | 120ms | Back Light Comp | ON/OFF |
| System Format | PAL / NTSC | Microphone | Yes |
| Power Consumption | Max. 6W | White Balance | AWB,ATW,MWB |
| Loudspeaker | 1.5W/8 Ohm | BLC | Auto |
| Operating Temperature | -20~+70ºC, RH 90% | D/N | D/N Auto Switch |
| Storage Temperature | -30~+80℃, RH 90% | D/N switching time | 000~255 |
| DNR | 2D/3D NR | ||
| Motion detecion | Yes | ||
| Digital image stabilizer | Yes | ||
| Shutter Speed | PAL:1/50~1/100000/s; NTSC:1/60~1/100000/s | ||
| Waterproof protection level | IP69K | ||
| Current Consumption | max: 300mA | ||
| Power Supply | DC 12 V--32V | ||
| Operating Temperature | -20°C~70°C, RH 95% MAX. | ||
| Storage Temperature | -40°C~80°C, RH 95% MAX. | ||
| Lens | f = 2.8mm | ||
| Lens Angle | 120° |
The following battery powed the above camera :

Rechargeable battery powed cameras
Shivision Co., Ltd. ,
located in Tianhe District, Guangzhou, is a high-tech enterprise engaged in researching, developing, manufacturing and marketing vehicle rear vision products and surveillance products. Being in this field for more than 10 years, our company has been bringing in advanced manufacturing facilities, cutting-edge technology, and high-quality professional talents. The company has independently developed a series of intelligent cameras, digital LCD, video signal wireless processing system, image processors, and video recorders, etc.
Our company insists on "Independent R&D" and "Customer Oriented" as the business philosophy. We maintain advanced innovation ability, and keeps strict quality control of products. Through years of effort, our company has gained recognition and reputation from the majority of customers;the products are exported to overseas.
We have established trade relations with more than 150 countries, and the export rate has reached more than 95%. In addition, the company has been certified with the highest international level of quality management system in auto industry ISO/TS16949:2009, and we are also in strict accordance with the EU ROHS standard during manufacturing. Meanwhile, a variety of our products have reached the highest waterproof rating of IP69K, and approved with CE, FCC, and EMARK, etc. Besides, our company has won 4 Design Patent, 2 Utility Model Patent, and 7 Software copyright, which enable us to become one of the world's largest suppliers of rear view products in the world.
