Custom box of sweetmeat packaging box/egg tart box making machine

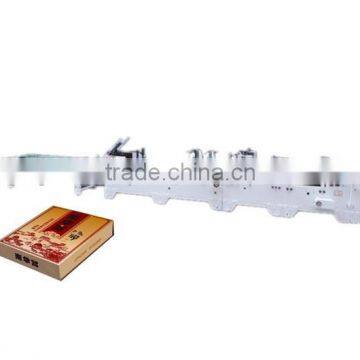

QH-SLJ Six Gluing Folding Machine(Carton Erecting Machine)

Product Effect :

    Fully automatic gluing machine is widely used in all models of paper boxex, such as  tissue case boxes, soap box and food boxes, etc.

Technical Specification :

Product Size Pulp:

1. 6 folds box and folding box

2. 4 corners box and folding box

3. bottom-locked carton and folding carton:

4. Carton type

5. two-sides glue box and folded box

Size of 6 folds box and folding box:

Brief introduction:          Lasagna Packaging Box

1. Feeding section:

a.auto feed correctly and continuously, internal of feeding is adjusted by continuously variable speeder;

b. independent high-speed feeding bell can be easily adjusted;

c. independent vibrating motor can improve feeding greatly;

d. feeding blade and baffle on the left and right can be adjusted upper and down to shorten adjusting and carton changing time.

2. Folding:

a. long-distant folding ensure the first line

180°, the third 135° to easily open the cartons fully filled;

b. all parts can be easily replaced, which is convenient to install other components for other kinds of cartons.

3. Bottom folding:

a. The entire bottom-lock part is installed in a reversible bracket, substantially reduce the swap adjustment time of bottom-fold box and the other types of box.

b.Bottom-folding speed is 50-400 pcs per min, stable and reliable.

4. Gluingbucket:
a.upper gluing bucket can adjusted separately up and down,right and left,to ensure the gluing quality

b.bottom gluing bucket can be adjusted right and left,set gluing amount,east to assemble,disassemble and clean

5. Folding:

Lengthened folding to avoid the unevenness while the rapid forming of cartons and make it come to perfection.

6. Full pressing:

a. Pressure can be adjusted conveniently, reliable, ensure good quality of gluing

b. With counting device to count the finished boxes to match with boxes regulating, easy to count and pack

7. Transmission:

Structure is specially designed, pressure adjustment is easy and reliable to ensure the quality of gluing;

8. Collecting:

 Press is equipped with independent speeding device, the operator can set the paper collecting speed according to the packing speed.

9. Spraying System:

Equipped with three guns, convenient in the production of 4/6 corner box and various special-shaped box, gluing quickly and accurately sizing.

10. Servo motor:

The servo control system, assistant with PLC and signal collection operation system, to fold each product (4, 6 corners box) correctly, ensure perfect quality.

Our Advantages :

Main wall plate adopt international standard 14mm thick iron plate,

Imported belt.More durable and stable.

Main bearing in the machine is imported, from NSK, Japan

Position adjuster: easy to adjust position, make machine run smoothly,

decrease defective index

Company information:

We are a professional manufacturer auto gluing folding machine.

Our Services :

1. Machine guarantee for one year.

2. Our company will provide you good after services. We can help you solve the problem through video, email, phone. 24 hours hot line.

3. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
