Manufacturer Quality small paper box making machines

Welcome to Wenzhou Qichen Industry & Trade Co.,Ltd.

Quality and the after sell service is our aim: we do not only sell the products but solutions.We believe that you will be satisfied with both our products and service.

QH-9905 small paper box making machines is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, carton, corrugated paper etc.

The food box(carton, container, dish, tray) is widely used as food container, hamburger box, burger box, hot-dog box(tray), one block box, food pail box (Chinese food box, take-away box), noodle box, fries box(chips box, chips tray), lunch box, meal box, etc.

Technical Speccification:

Box Tray Forming Machine Technical Specification:

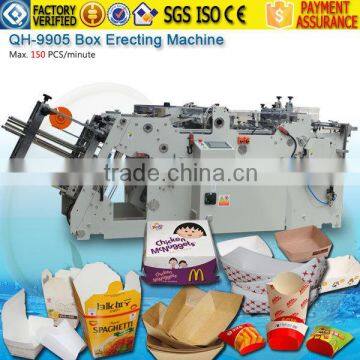

• Model: QH-9905 small paper box making machines
• Paper box forming machine
• Speed: 80~ 180 box/minute
• Welding Method: Water-Glue System Welding; (Food grade glue, POLYVINYL-ACETATE EMULSION),
• Available Material: 200~600gsm cardboard, paperboard, paper, film coated paper, etc.
• Material Thickness: Max. 1.5mm
• Power: 3KW,
• Power Source: 380V, 220V 50/60Hz,
• Machine Size (L*W*H): 2950*1320*1500
• Weight: 2000KG;
• Air Source: Pressure: 6KG/cm2 ; Out-put: 200 L/minute ;
• Available to make machines and molds on user order.

Box Tray Forming Machine Advantage:

• # Compact structure, Strong frame, keep the machine reliable and durable with low noise.
• # Hard Plastic-glass cover, Safe and visible for user.
• # Easy exchange molds to make different products, charging and adjusting time is very short.
• # PLC program control the whole line, available to make complicated boxes.
• # Automatic collection, stock, and count.
• # Human being designed control button and panel, more easy and safe runs by user.

Box Tray Forming Machine Standard Output Capacity :

• One block paper box(4-corner box without cover), Max. 180pcs/min;
• Fries box (chips box, chips tray): Max. 150pcs/min
• Burger box (hot-dog box): Max. 120pcs/min
• Food pail (DEEP food box): Max. 100pcs/min

 The good should be of good quality. But another important thing is the after service. Machines are machine, so they will have problems, even small problems.It is hard for customers to solve all the problems.

Our company will provide you good after services. We can help you solve the problem through video, email, phone. 24 hours hot line.

If needed, we can also let our engineer go to your country to solve the problem. We hope all the customer will satisfied with our machine and services.
