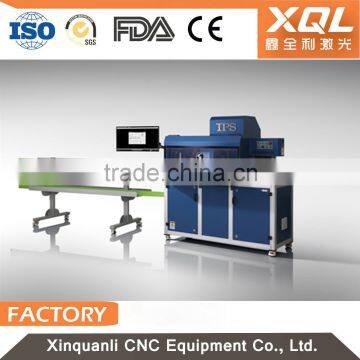

Automatic Multi-functional Channel Letter Bending Machine

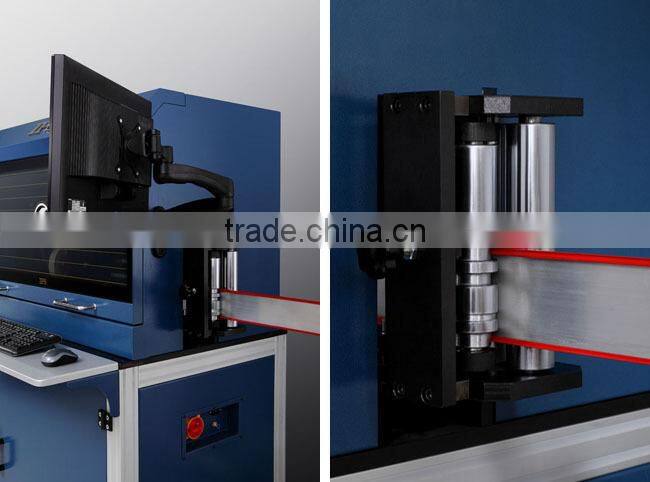

ixed base for computer monitor can avoid uncomfortable phenomenon when people operate the machine because of large visual angle caused by high equipment and setting monitor on the top of the equipment hood. And to avoid impact the screen and keep out the screen when equipment cover is turned on. Users can adjust display stand cantilever angle freely according to their visual habit, to make screen position and angle in the best situation for operaters.

Front feeding straightening mechanism straightenning curved materials in advance for users in the process of material handling or use the reel material lead to nature bending deformation, to ensure that unstraight mateirals won'’t be stuck during processing.

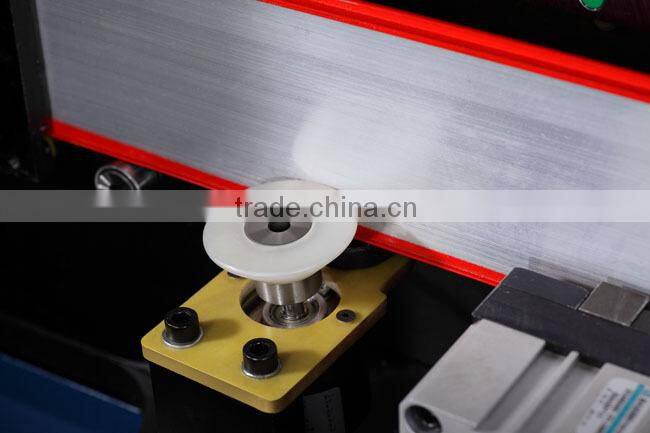

The clamping alternating conveying mechanism is composed of two groups of cylinder clamping device, by linear guide, synchronous belt, tension adjusting mechanism, deceleration strengthening mechanism and large torque step motor cooperate closely to achieve high precision feeding, to eliminate the slippage of the roller type feed physics and indentation phenomenon caused by the stress.This machine components manuafactured with high recision, assemble complex, difficult to control. This mechnism is only fit for high-end equipment.

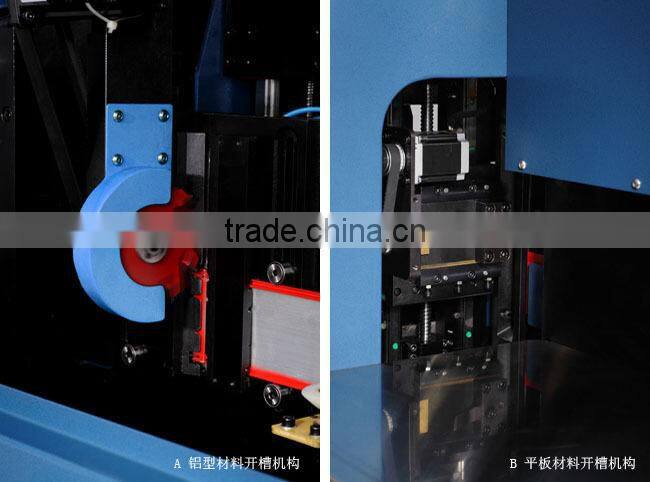

B,Planer slot mechanism is drove through the servo motor with characteristics of high speed, high precision and constant torque,  using step motor to control slot depth accurately, Using high quality ball screw, high precision linear guide to implement the mechanism of high rigidity and high durability, using imported special stainless steel cutter from Germany for slotting, slot track and slot deth can be set in the operating software; cutter with low-cost and durable, easy grinding, quick grind cutter and replace cutter in several munites.

The intelligent offset and personalized compensation: The software automatically generate corresponding to cooperate the contour offset mode, no need third party software for processing; manual compensation setting seprately according to users need, to avoid the tedious and error-prone revising figure, in this way to improve the intellectualized degree.

Bending stress database: different material type and thickness make different springback when bending, it needs control system adjusting bending pressure easily and quickly sccording to different materials. TPS is based on further studying of different materials, realized only adjusting one pressure parameter for a new material, that is,  Through the system's built-in algorithm,  intelligent computing all arc pressure parameters. User can select the corresponding material from database when they want to change another material. In this way to switch material at any time without a cumbersome re-adjustable processing.

Laser loss compensation:  In the actual laser cutting due to the problem of laser spot radius, the panel with the original file after cutting has a certain deviation. TPS introduced laser loss compensation method innovatively, only need a simple measure, our software calculates laser loss and to compensate automatically. Users thorough farewell problems of modification again and again and compensating for laser loss, it improves intelligent degree for operation process.

Plate bending tensile intelligent compensation:  Deformation of the material during bending processing will effect directly length of formed letter, reduce the letter matching precision of the shell and panel, the software provide intelligent compensation caused by the length deviation, to ensure bending accuracy.

Software build-in many word process: Different word process need to corresponding zoom for original file and processing waste of materials. Our software build-in some word process, to make different font letter using the same file, to avoid the complex calculation.

Operating software updates free all life.

Professional, high-efficient and considerate full service.

DXF/PLT files input, support CAD, TYPE3, CRELDREW, ILLUSTRATOR, etc.
