Home > Products > QL CNC Notching and Bending Machine > S9700 Bending Machine for the Aluminum Profile

S9700 Bending Machine for the Aluminum Profile

FOB Price

US$ 19,800 - 25,000 / Set

1 Set(Min. Order)

Port Guangzhou

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	QL	Model Number	S9700
Machine Type	Beading Machine	Raw Material	Sheet / Plate Rolling
Material / Metal Processed	Aluminum	Power	Cnc
Automation	Automatic	Extra Services	Other, Slotting & Notching
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Machine Introduction

1. Technical Parameters:

Name	led channel letter signs bending machine
Power supply	AC200V
Total Power	3.0KW
Compressed air	0.4-0.8MPa
Control axis number	8
Min. Bending radius	stainless steel: R7mm; alu profile: R20mm
Min. distance between interior angle and exterior angle	stainless steel: 4mm; alu profile: 15mm
Bending distance from start	stainless steel: 4mm; alu profile: 10mm
Material	stainless steel coil & strip, aluminium profile, galvanized plate, chanalium, etc.
Material thickness	stainless steel: 0.6-1.0mm; aluminium profil: 1-2mm
Material height	25-180mm
Material feeding method	Clamping alternate feeding
Servo motor number	3pc
Step motor number	5pc
N.W.	700 Kg
Size	2400×1035×1738mm

Support files: DXF/PLT files input; CAD, Type3, CorelDRAW, Illustrator.

2. Features:

- 8-axis-high-performance motion card with self-developed control system -- higher moulding precision;

- Unique retractable alternating bending mode;

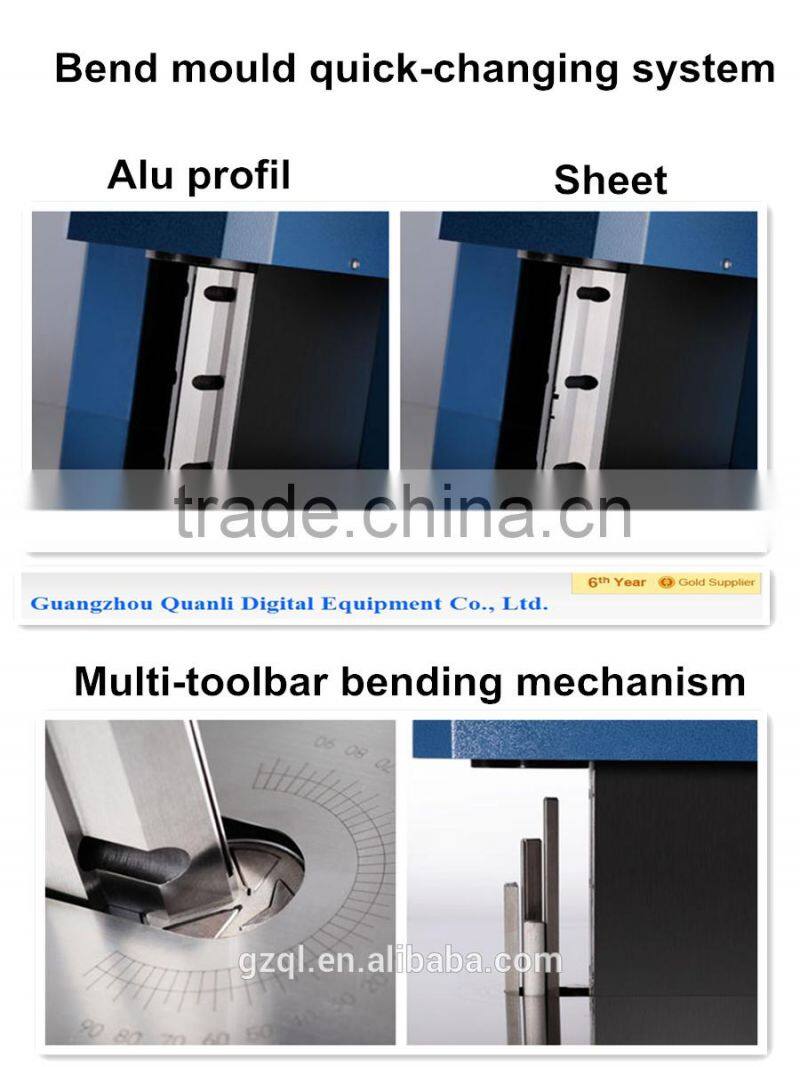

- Bend mould quick-changing system.

- Multi-toolbar bending mechanism

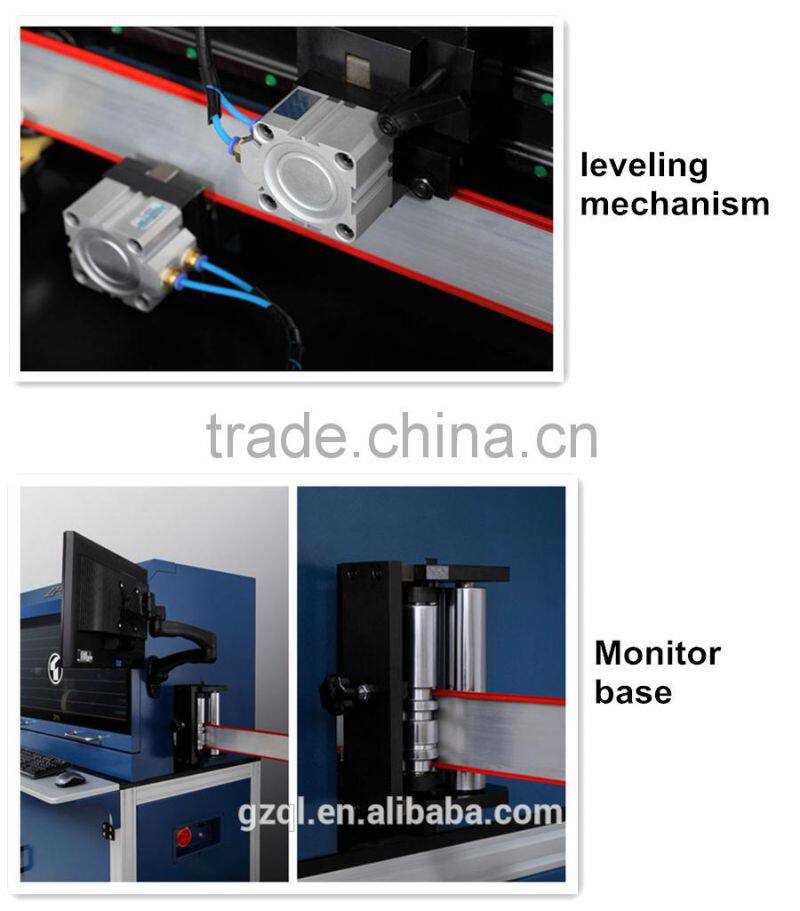

- Pre-feeding leveling;

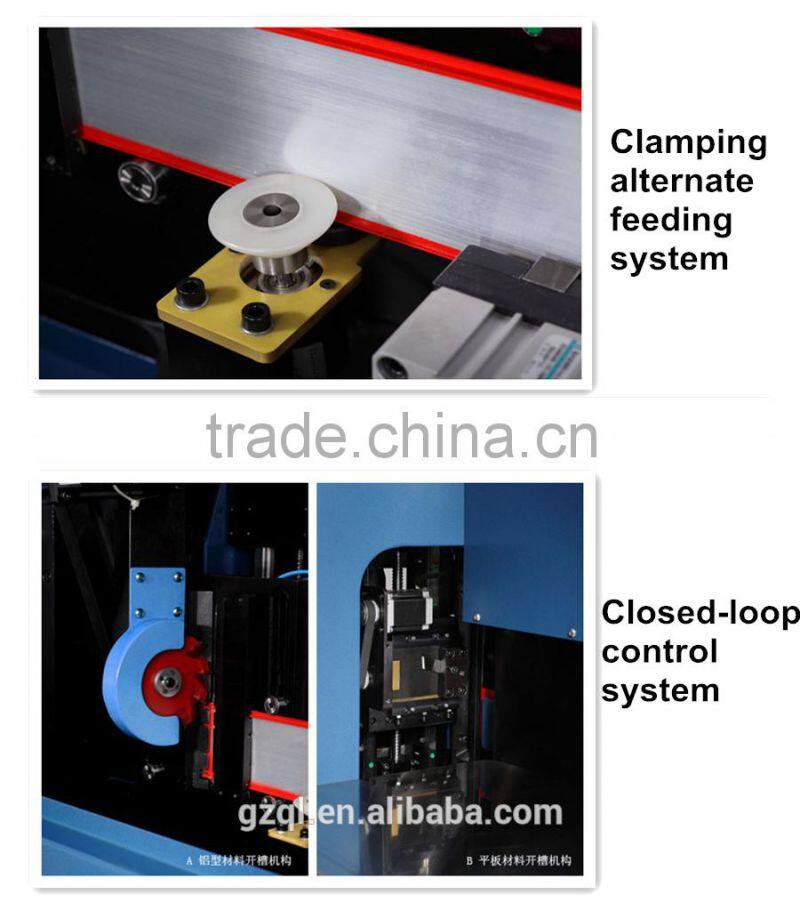

- Clamping alternate feeding, double lead screw nuts driver for slotting.

- Especially capable for making letters with small radien, small angle and complex graphics.

3. Advantages:

1.) Suitable for high-end Led sign, crochet letter around alu profil, stainless steel punching letter, resin letter, etc..

2.) Bending angle and speed automatically adjusted before;

3.) Dual-Function: V-Slotting+Bending

4.) Low slotting cost: One tool can be used for half a year (about $25 each tool)

5.) Free upgrade for the Control Software

6.) Support Windows 2000, XP

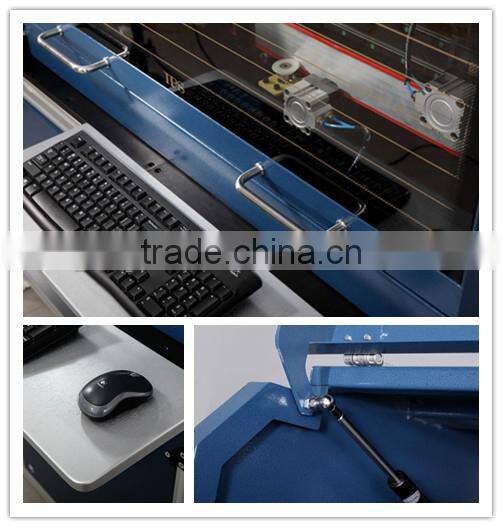

4. Equipment Details:

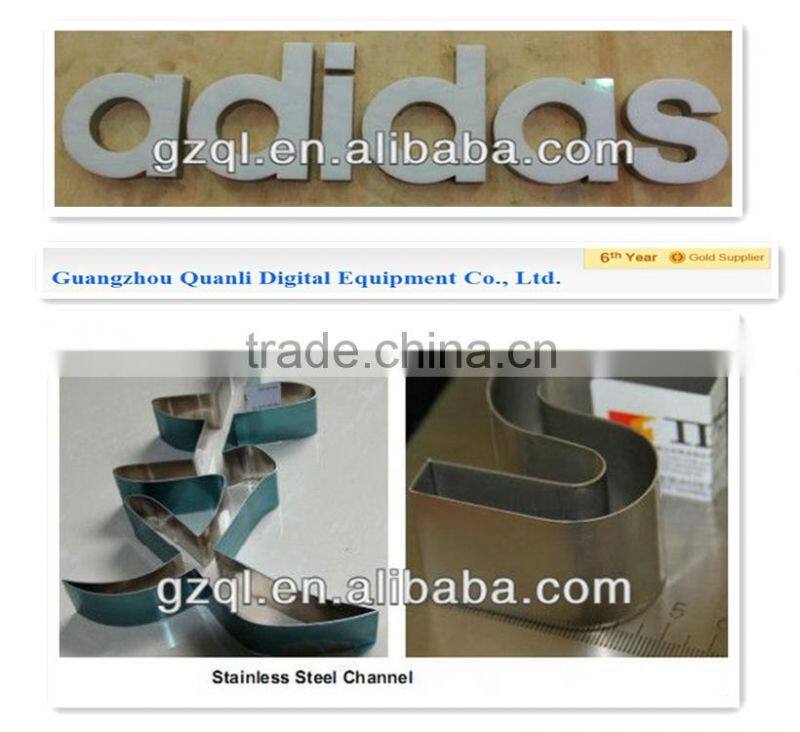

samples

FAQ

Q: How about after-sales service?

A: 1. We can provide free training in our Foshan factory or Guangzhou office.

2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

Q: How about the warranty?

A: One year warranty. Spare parts are not included. We suggest u buy some spare parts in stock.

Q: What should I do when I have some problems or questions?

A: Pls don’t hesitate to contact us via Skype, WhatsApp, Viber or email, we will reply u ASAP. If u are not satisfied with someone’s service, u can complain to our Boss.

Q: How about the quality?

A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

Q: Which is the most suitable model machine for me?

A: Pls tell us your materials, thickness, size and business industries.

Packaging
