SKY-N500 5.8Ghz 500mw 32ch FPV Transmitter for Hubsan x4 H107d Fpv Quadcopter

FOB Price

US$ 1 - 40 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

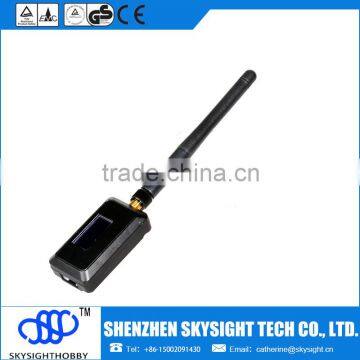

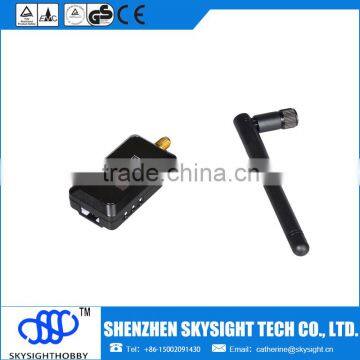

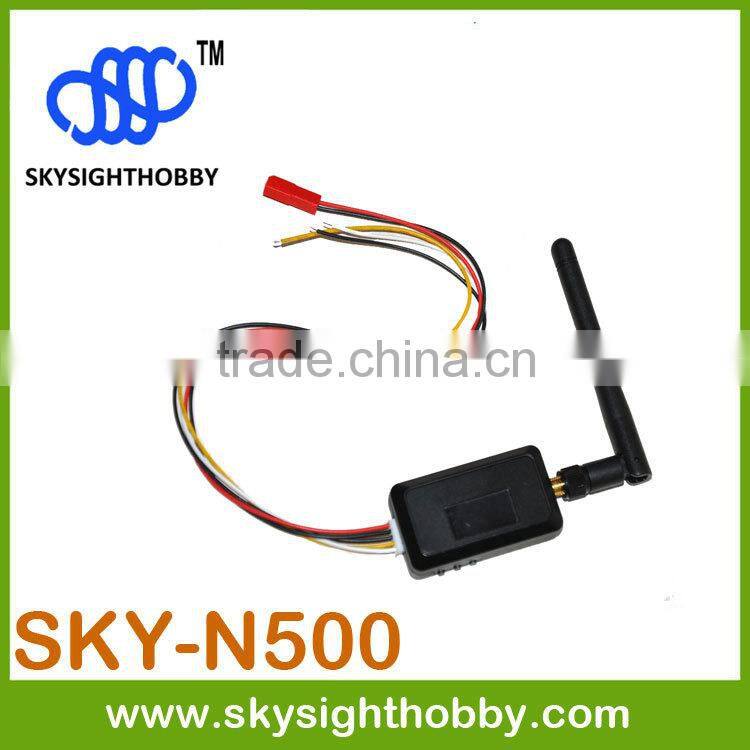

SKY-N500 5.8Ghz 500mw 32ch FPV Video transmitter for hubsan x4 h107d fpv quadcopter

Features of SKY-N500 micro transmitter and receiver tv transmitter

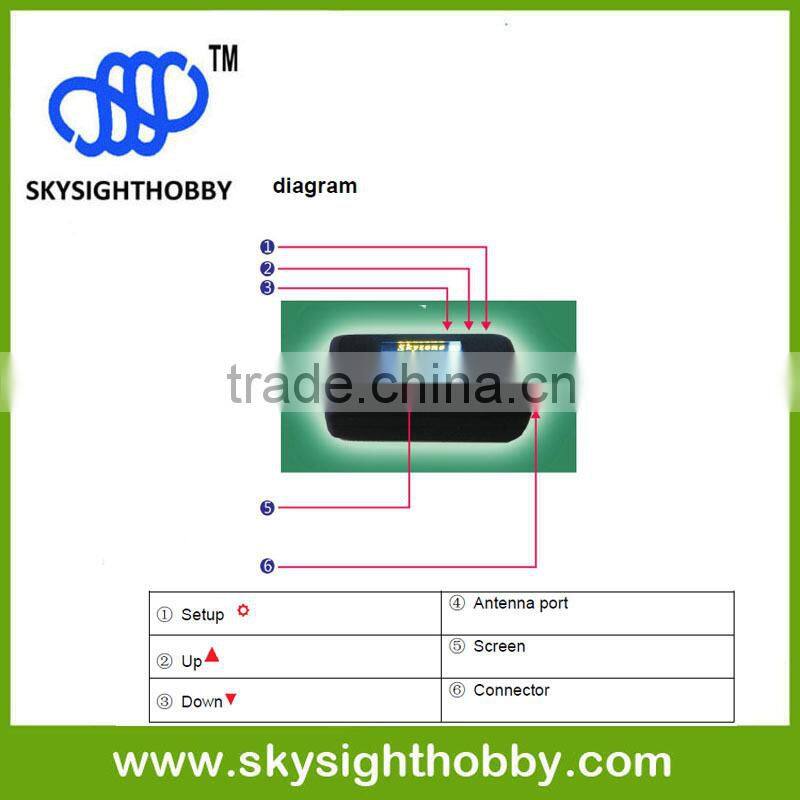

l 128*64 super bright color digital display with High Brightness & Contrast , clearly visible under the sun
l Channel and Frequency clearly visible on screen car fm transmitter
l Output power 500mw, distance no less than 1Km with 2dbi Omni directional antenna
l Support 2-6S battery and low battery alarm 5 differential pressure transmitter km long range fm transmitter
l Battery Voltage display t
l Screen Display: Current/Temperature/PA Power detection.

Specification:

	Test Condition	Min	Typ	Max
Operating Voltage		6.5V	12V	28V
Output Power	@25℃	24dbm	27dbm	28dbm
Antenna Connector			SMA Jack
Supply current	@12V	0.25A	0.3A	0.6A
Operating Temperature		-10℃		80℃
Voltage detection accuracy		±0.05V	±0.1V	±0.5V
Current detection accuracy		±0.05A	±0.06AV	±0.2V
Temperature detection accuracy		±5 ℃	±5 ℃	±10 ℃
Video Band Width		5MHz	6MHz	6MHz
Video Input Impedance			75Ω/1Vp-p
Audio input impedance			6.5M H z
Audio sub-carrier			4.7KΩ
Net Wight			g
Dimensions			cm

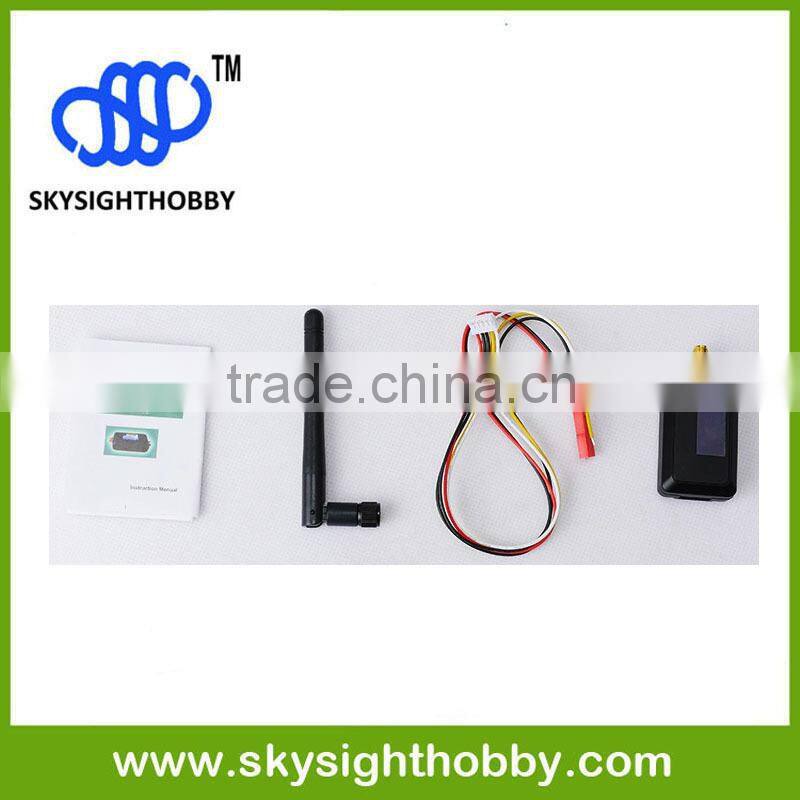

Packing Accessories List optical bluetooth transmitter
