Drill Grinder MR-13D easy operation,One Year Warranty
- 100 Set / Sets per Month
- HK
- Credit Card PayPal
You May Like
-
Free shipping Digital Distance measurer,Ultrasonic Distance Meter Smart Sensor AR841
-
Industrial laser Water Chiller CW 6000AH with 220V 50HZ,Long working life and simple operation
-
High speed Logo Printing Machine,date coder HP 241B
-
Hot sell mini lathe PROXXON garland saw table saw jig saw
-
Mini wood milling machine,high quality and good service
-
Non Contact Infrared Thermometer MASTECH MS6520A
Product Details
Place of Origin | Guangdong, China | Brand Name | - | |
Model Number | MR-13D | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Drill Grinder MR-13D easy operation,One Year Warranty
Features
1. Grinding is accurate and rapid, easy operation, with no skill requirement to grind easily.
2. Economical price that greatly reduces the cost and improves the use effect.
3. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. Bearing shaft and locking unit.
6. Independently researching and developing 13D can grind the drill bit's point angle, back angle and front cutting lip (front angle), you also can control the centre spot at random instead of centre drill, escape of chips easily, drilling with a light heart.
Specifications
Model | MR-13D |
Grinding Range | Ø 2 - Ø 13 (Ø 15) mm |
Point Angle | 100° (90°) ~ 135° |
Power | AC 220 V, 50 Hz; AC 110 V, 60 Hz |
Motor | 180 W |
Speed | 5300 rpm |
Dimension | 32 x 18 x 19 cm |
Weight | 10 kg |

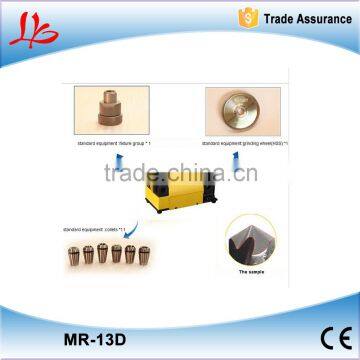

Standard Equipment | Grinding wheel: CBN (for HSS) ×1 |
Eleven collets: Ø 3, Ø 4, Ø 5, Ø 6, Ø 7, Ø 8, Ø 9, Ø 10, Ø 11, Ø 12, Ø 13 | |
Collet chuck: (Ø 2 - Ø 14) ×1 | |
Option Equipment | Grinding wheel: SD (for Carbide) |
Collets: Ø 2, Ø 2.5, Ø 3.5, Ø 4.5, Ø 5.5, Ø 14, Ø 15 | |
Collet chuck: Ø 15 |
The voltage could be 110 V60 Hz or 220 (or 380) V/50 Hz (optional). By default, we will ship the product with voltage and frequency standard in the recipient's country. If you need something different, please send us a message.
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
