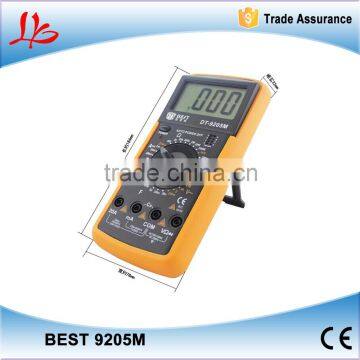

BEST 9205M Handheld LCD Screen Digital Multimeter With buzzer

The BEST times Rest DT9205M digital multimeter is an easy to operate, accurate readings, full-featured, compact, easy to carry, use battery-powered handheld large screen LCD Multimeter, DT9205M digital multimeter for three and a half, the table can be used toMeasure DC voltage / electric, AC voltage / current, resistance, capacitance test, diode test, transistor HFE measurement and circuit off, etc..
For engineering design, laboratory, pilot production, factory affairs, field operations and industrial maintenance use.
The BEST full protection 9205 features: full-featured wrong stalls as well as over-range protection anti-burn protection and superior performance the fuse (machine) automatic shutdown function better protect the battery COMS integrated circuit, the principle of double integral A / D converter automatic zeroing, automatic polarity selection overrange indication. 1 - off test high quality buzzer sound and light-emitting diodes indicate parameters of CMOS integrated circuits, the original double integral A / D conversion, automatic zero, auto-polarity selection, over range indication LCD display 70 * 40MM big screen with high contrast screen, word up to 25MM. Observation position needs multimeter display angle can freely change the angle of about 70, best observed with automatic shutdown function, about 15 minutes after boot automatically cut off the power to prevent the instrument after use forgets to turn off the power to repeat the operation of the power switch, can continue to boot. Highly reliable range of new optimization design / function rotary switch structure. With 32 stalls. More effectively to avoid misuse.
Performance:
DC Voltage 200mV-1000V ± (0.5% +1)
AC voltage 200mV-750V ± (0.8% +3)
DC Current 20mA-20A ± (0.8% +1)
AC Current 20mA-20A ± (1% +3)
Resistance of 200?-2000M? ± (2.5% +3)
Capacitance 2nF-200?F
Crystal diode test is
Diode test
Beeper is
Automatic shutdown is
Power supply 9V, 6F22
Maximum Display 1999

1.We provide you the friendly English User manual or operating videos for free.

 2.24 hours technical support by email or calling.

 3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

 4.Free training to make sure you master the operating of our products.

 5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
