YIHUA 1000B 3 Functions in 1 Infrared Bga Rework Station SMD Hot Air Gun+75W Soldering Irons+540W Preheating Station
- 500 Set / Sets per Month
- HK
- Credit Card PayPal
You May Like
-
BGA Kit Reballing station + 11pcs PS3/XBOX360/WII stencils + Solders tools
-
AOYUE 768 Soldering Stations,built in air flow gauge and diaphram pump
-
High Power 300W Hakko 850 Desoldering Station,ESD Rework Soldering Station
-
Hot sell BGA stencil set 20pcs,good pice and convenience
-
Newest Design! High Precision universal 80mm 90mm BGA Reballing Station with Magnet Inside
-
LY IR Mate Reflector IR Cover Upper Heater Reflectors Set Universal For Infrared BGA Rework Station
Product Details
Condition | New | Place of Origin | Guangdong, China | |
Brand Name | YIHUA | Model Number | 1000B | |
Dimensions | - | Weight | 10KG | |
Usage | Welding | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

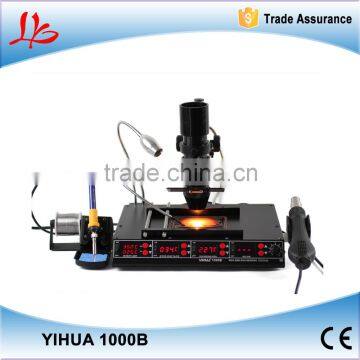

YIHUA 1000B 3 Functions in 1 Infrared Bga Rework Station SMD Hot Air Gun+75W Soldering Irons+540W Preheating Station
Feature
1. Using the new SAMSUNG microcomputer processor PID programmable temperature control technology and uses an infrared source and optics to target heat to individual components without dislodging other SMT parts by way of eddies air currents.
2. Adopt infrared weld technology which independent exploration , infrared penetration strength , components uniform heating , beyond the traditional hot air heating vowed to prevent blow off the IC surrounding small components.
3. Technician focused infrared heat is easy to target most component removal/replacement and re-work.
4. Infrared heat source bulbs are long-lived , un-expensive and easily replaced.
5. Has bright delicate , low voltage LED lighting , safety and energy conservation.
6.It has External Sensor Temperature control mode , that is detected by the sensor IC surface temperature control temperature , this function is good for freshman operation , it’s safe way protect components .
7.MountTechnology (SMT) components 15-35cm in size.
8. This machine has 540W heating system , widely to 120mm*120mm.
9. Preheating plate color is black , from the photics point of view , black color easy to absorb heating , shorten the warm-up time.
10. Powerful human function design , with the following functions
A. Temperature correction function Correction of temperature range -50°C~+50 °C ( Infrared lamp analog value 580 ).
B. Celsius / Fahrenheit temperature display function
11. This machine also has soldering iron function , if you have the device , you can used for all of the components solder , desoldering , preheating , repair all components , especially Micro BGA components.
Technical Data
Voltage AC220V±10%
Max power consumption 715W
Preheating station parts
Max power consumption 540W
Light-emitting components Far infrared heating plate
Temperature Range 50°C-200°C
Display Type LED
Preheating area120*120mm
Infrared lamp part
Max power consumption 150W
Light-emitting components Infrared emission lamp
Temperature Range 100°C-350°C / 212°F~662°F
Temperature Stability ±1°C
Display Type LED
Effective irradiation area 35*35mm
Come with 2 lens cup , you can be choice two of lens cup from 28mm / 38mm / 48mm.
Soldering station part
Max power consumption 75W
Heating components imported heater
Temperature Range 200°C-480°C / 392°F~896°F
Temperature Stability ±1°C ( statics )
Tip of ground voltage <2mV
Tip ground impedance <2 ohm
Display Type LED Display
Handle cable length ≥100cm
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
