Description:

1. Embedded PC control, high definition touch screen user interface, CPU control, with a function of Instantaneous curve analysis, real time display settings and actual temperature curve, Analysis and correct curve

2. High accuracy K type thermocouple closed-loop control and automatic temperature compensation system. Comined with CPU and temperature mode to realize presice control. Keep temperature departure ±2 degree. Meantime, external temperature measuring interface implementation for detecting the temperature precision, analysis and proofreading the measured temperature curve

3. Used V type slot to fix PCB, quick Positioning , convenient and accurate

4. Flexible convenient and movable clamp can protect PCB, prevent PCB from damage and deformation

5. Equipped with various alloy nozzles. Easy to install and change

6. Upper heating is interconvertible with infrared heating. There are 3 temperature area, can process 3 temperature areas at the same time

7. Upper and bottom temperature areas can set 8 sections temperature control, save mass temperature curves

8. Preheating area used infrared light tube, faster and accurate warming, cooling

9. Used high powered cross flow fan to cool in case of PCB deformation, Built-in vacuum pump, external suction pen to make picking up BGA chips easily

10. Equipped with voice control “early warning”. After upper and bottom hot air heating stops, cooling system is on and automatically stops after waiting for temperature down to room temperature

11. With USB port, easily download and save current curve graph to USB. Extended touch screen service life by using mouse

12. CE certification, with emergency stop button and APO device

Technical Parameters

Packing list:

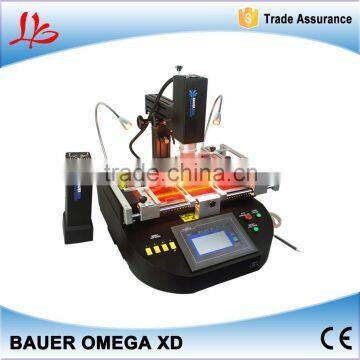

1× bga rework station (with IR Top and Hot air Top)

2× pcb bottom support

6× pcb jig (with screw)

5x nozzles (4 pcs for top 1 pcs for bottom)

2× k-type Omega thermocouple

1× brush

1× CD of manual and software (if not get, may be lost in customs, please contact us)

1.We provide you the friendly English User manual or operating videos for free.

 2.24 hours technical support by email or calling.

 3.Warranty: 1 year free, 2-3 years cost price and free technical support always.

 4.Free training to make sure you master the operating of our products.

 5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.

USBearth business group is located in Shenzhen, China.

Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .

We has 10 years experiences in manufacturing and foreigh trade

Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …

CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.

1) This is the first time I use this kind of machine, is it easy to operate?

There is english manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
