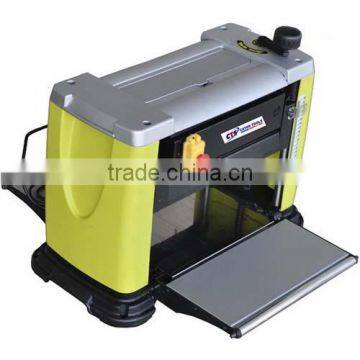

Spiral Cutterhead Portable Thickness Planer 318mm (12-1/2")
- 1000 Piece / Pieces per Month
- Qingdao
- T/T
You May Like
Product Details
Condition | New | Type | Thicknesser | |
Place of Origin | Shandong, China | Brand Name | CTS | |
Model Number | 800-0172 | Voltage | 230V | |
Power(W) | 1500W | Dimension(L*W*H) | 695*375*500mm | |
Weight | 35 | Certification | CE,CSA | |
Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Features:
1, Excellent surface quality: The shear-cut technology of the spiral cutterhead provides an excellent smooth cutting surface even on knots, wild grain and fissures.
2, Low working noise: The shear-cut spiral cutterhead changes the line-cutting to pointcutting.
3, It can remarkably reduce the cutting resistance and reduce the cutting noise.
4, High working efficiency: 4 swings 40pcs sharp Carbide Inserts on the 8000rpm cutterhead provides a high efficiency cutting.
5, Convenience for moving: light weight to 35kg for easily moving to any place.
Parameters:
Order No. | 800-0172 |
Max. cutting width: | 318mm |
Max. cutting depth: | 3mm |
Thickness range: | 5-153mm |
Min. workpiece length: | 127mm |
Feeding speed: | 8m/min |
Spindle speed: | 9000rpm |
Table size: | 318×295mm |
Feeding Table (2pcs): | 375×175mm |
Dust port | 50mm |
Motor: | 230V 50Hz 1500W |
120V 50Hz 15A | |
Packing size: | 695×375×500mm |
G.W./N.W.: | 35/33kg |
20ft/40ft Loading | 192pcs/408pcs |
Optional Accessories:
Carbide Insert; Machine Stand.
Detail of Spiral Cutterhead:
Working with Stand (optional):
