Home > Products > Woodworking Tools > 1300mm Wood Planer and Sander

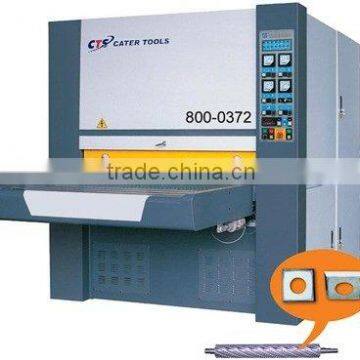

1300mm Wood Planer and Sander
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Thicknesser | |
| Place of Origin | Shandong, China | Brand Name | CTS | |
| Model Number | 800-0372 | Voltage | 380V | |
| Power(W) | 77kw | Dimension(L*W*H) | 3090*2060*2310mm | |
| Weight | 5000kg | Certification | CE Certification | |
| Warranty | 1 Year Garantee | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Order No.: 800-0372
Specifications: 1300x100mm
This is combined planer and sander is high efficient and cheap to use. With one pass, the wood can be planed and sanded to size. It comes with speed reduce system driven by bevel-worm driving transmission, inverter speed change, smooth sanding and planing.
The spiral cutterhead with four sides reversible carbide inserts smoothly cut even knotty, cross grain and hard wood, which makes the sanding much easier. If one insert edge is dull, just untighten it and turn it around to another size. The cutterhead works like a new one again. One spiral cutterhead saves you hundreads of sanding rolls.
Technical Data:
Working width: 40-1300mm
Working thickness: 3-100mm
Working length: >590mm
Power of conveyer belt motor: 5.5kw
Feed speed: 4-20m/min
Size of abrasive belt (WxP): 1330x2500mm
Main motor power: 22KW, 30KW, 18.5KW
Working air pressure: 0.55MPa
Volume of sucked air: 12000Cubic Meter/h
Consumption of compressed air:0.2cubic meter/min
Overall dimension(LxWxH): 3090x2060x22310mm
Net weight: 5200kg
