Tube and Pipe Inside Surface Polishing Machine

Specifications

Specific Purpose

The tube and pipe inside surface polishing machine is designed for polishing the interior surface of tubes and pipes.

This machine is one of its kind designed by FOT i.e. Foshan Nanhai XiangFuTai Machinary Equipment Co., Ltd.

Performance Characteristic:

High precision polishing

Easy to operate & fast polishing

High level automation and high simultaneous polishing efficiency of tube inside.

PLC control system

Technical details:

Equipment size: 14800mmLx900mmWx1700mmH

Range of pipe inner diameter: φ25~φ101mm

Suitable for material: stainless steel

Working speed: 1-3m/min

Motor : AC380V/2200W

Power : AC220v/50HZ

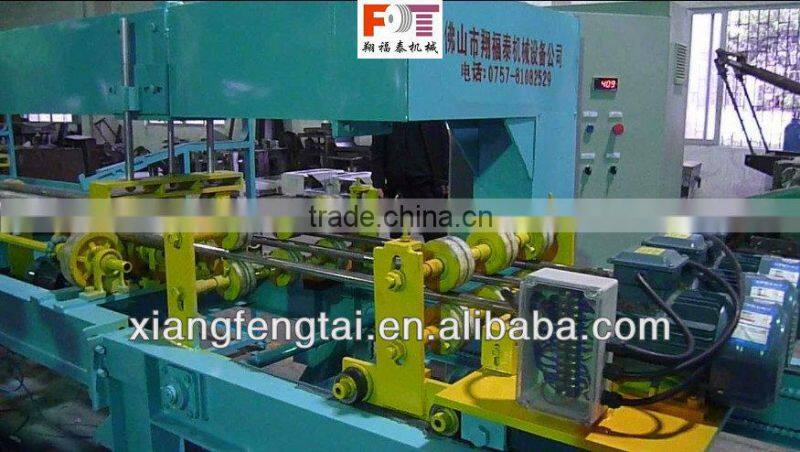

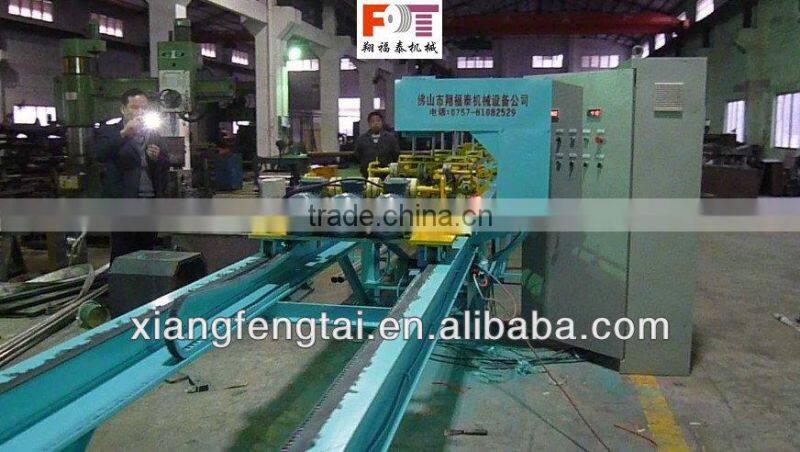

The tube and pipe inside surface polishing machine consists of:

Main body: The main body. ie. the welded steel structure of the machine guarantees its stability,safty and long woking life.

Workpiece fixer: It’s purpose is to fix the steel tube(workpiece) in order for the polishing wheel to aim at and enter the tube .

Buffing head & linear moving system: The speed is regulated by Stepless gear motor.The flexible shaft with a buffing head attached at the end moves back and forth driven by chains driven by motor,the buffing head rotating inside the tube.

Feeding device and Unloading device: Automatical control of feeding,positioning and unloading of the workpiece achieved by linear guideway driven by air cylinder

Height adjustment device:By elevating or lowing the workpiece fixer to ensure the same centre height of the work piece and buffing head.

PLC control system

...
