Stainless Steel Sheet Plate Coil 8k Mirror Polishing Line

Specifications

stainless steel sheet plate coil 8k mirror polishing line

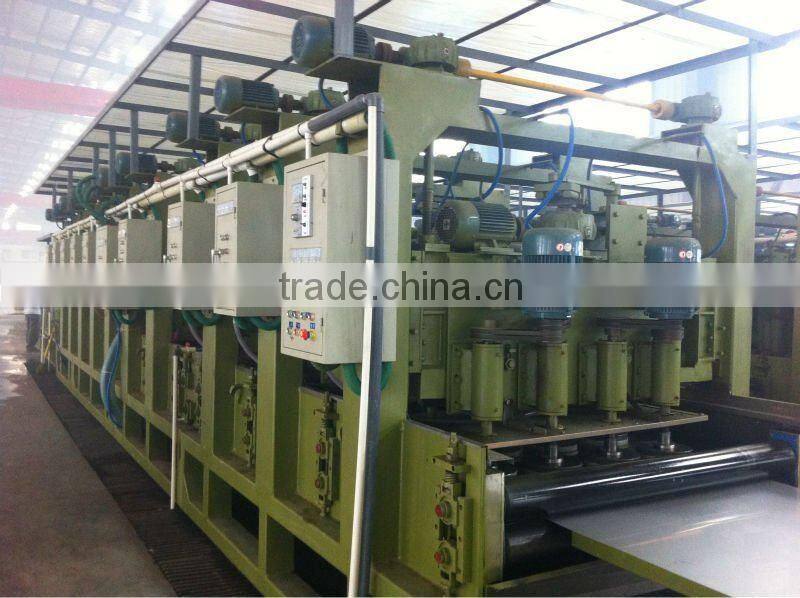

Mirror (8K) Polishing Machine is composed of Inlet & Outlet Roller Table, Polishing Main Machine, Cleaning & Drying Unit, Laminator and electrical Control Unit etc.

Coiler & Decoiler System would also be added for Coil to Coil Solution if needed.

Mirror Polishing Machine is used to Polish Sheet or Plates of Stainless Steel up to Highly Reflective Mirror Effect. The surface receives a uniform and directionless gloss with a magnificent brilliance.

Polishing compound is evenly distributed to the flat surface of the sheets or plates, which will be polished with Rotating Buffing Felts until the surface reaches a highly reflective level.

Polishing Compound feeds the work pieces continuously from the source and then is filtered & recycled by the assistant filtering system, which will afterwards, feeds the cleaned compound back to its source for reuse.

After Polishing is done, work pieces will be treated by the following drying & cleaning unit before they are laminated with Protective Film for usage or further treatment.

Mirror (8K) Polishing Machine is featured by

--- Environment Friendly, Liquid compound will be recycled and reused, No

Compound leakage or Splash.

--- High Working efficiency, Low Operation Cost.

--- Compact Design, Machine parts are free from being etched by Polishing

Compound.

--- Stable Oscillation System, Vibration lines are avoided

--- Adjustable Transmitting Speed, Forward and Backward Transmission

---Adjustable Polishing Pressure

--- Fast Change of the Polishing heads

-- Large Polishing head with High RPM

--- Automatic thickness Adjustment, With Manual Assistance

--- Perfect Cleaning & Drying Unit, No Water mark or dirt is left after Laminating

---Large Machine Space for Maintenance and Repairing.

--- Easy Operation

--- Best Cost Performance
