QZ magnetic micro switch China Manufacturer

FOB Price

Negotiable / Piece

100 Pieces(Min. Order)

Port NINGBO/SHANGHAI
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	WEHOPE
Model Number	QZ	Protection Level	IP54
Operating Temperature	-25℃~+80℃ (with no icing)	Max. Current	5A
Max. Voltage	250V

Product Description

Main technical parameters for QZ magnetic micro switch

Characteristics Of Contact Module

Rated operating characteristics	Inductive load: ~AC15,B300 (Ue=240V, Ie=1.5A) --DC-13,R300 (Ue=250V,Ie=0.1A) Resistive load:250V, 5A
Rated insulation voltage	Ui=500V, class of pollution is 3, comply with IEC 60947-1 Ui=300V, comply with UL508, CSA C22-2n°14
Insulation sistance	100MΩ above (megohmmeter of 500VDC)
Operating equency	Mechanical: maximum 240 times/min.; electrical: maximum 20 times/min.
Electrical life	500,000 times
Contact resistance	Less than 15MΩ (initial value)

Environmental Characteristics

Normative reference	Product	IEC60947-5-1, EN60947-5-1, UL508, CSAC22-2N°14
Normative reference	Components	IEC60204-1, EN60204-1
Ambient temperature	Operation	-25~+80℃
Ambient temperature	Storage	-40~+80℃
Vibration resistance	Comply with IEC60068-2-6	10-55Hz complex amplitude 1.5mm, misoperationwithin 1ms (in state of FP,TTP)
Shock resistance		Maximum 300m/s2, misoperation within 1ms (in state of FP, TTP)
Mechanical life		10,000,000 times
Operation speed	Comply with IEC60068-2-27	0.01mm to 1m/sec (lock plug type)

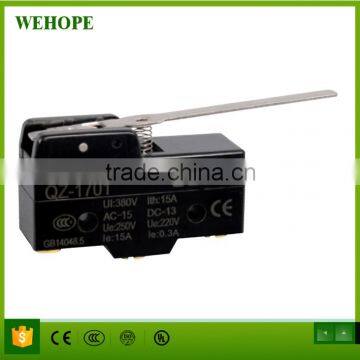

The detail of QZ magnetic micro switch

Product characteristic

1.High accuracy of action position;
2.Good shock resistance, maximum 1000m/s2;

3.Good heat resistance, maximum operating temperature is T105℃;
4.High-strength shell, when mounting, the plastic shell can withstand torsional moment of 6kgf.cm without break.
