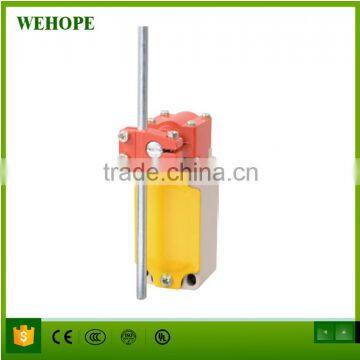

Wholesale In China control electrical magnet of AC or DC type LXK3 travel switch
Negotiable
/ Piece
100 Pieces(Min. Order)
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
-
Wholesale Long life electrical switch 380V 10A LXK3 travel limit switch
-
Universal type, automatic reset LXK3 types of electrical limit switches
-
Roller plunger-type,automatic reset IP65 LXK3 price limit switch omron
-
single rocker,single rotary wheel,automatic reset 3SE3 pneumatic limit switch
-
single rocker with length adjustable 3SE3 telemecanique limit switch
-
AC50~60Hz,380VAC or 220VDC,10A,3SE3 micro limit switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WEHOPE | |
| Model Number | LXK3 | Protection Level | IP65 | |
| Operating Temperature | -25℃~+40℃ (with no icing) | Max. Current | 10A | |
| Max. Voltage | 380V |
Product Description
Main technical parameters for LXK3 travel switch
| Application | The typical usage of travel switch is to control electrical magnet of AC or DC | |||
| Control capacity | AC-15 | DC-13 | ||
| Ue Rated insulation voltage | Ie Rated working current | Ue Rated insulation voltage | Ie Rated working current | |
| 380V | 0.8A | 220V | 0.15A | |
| 220V | 1.4A | 110V | 0.3A | |
| 110V | 2.8A | |||
| Rated value | Rated insulation voltage Ui=380V, conventional enclosed heating current Ith2=10A | |||
| Protection for short-circuit | Rated fuse current 1000A RL1-15/10 | |||
| operation frequency | AC 2400 times / hour, DC 1200 times /hour | |||
| eleatrical | Electrical life of AC one million and half times, Electrical life of DC three hundred of thousand times | |||
| mechanical | LXK3-20 S.H/H1,H2,H3,LXK3-20 S.H/W:6,000,000 times others:10,000,000 times | |||
| Repetition precision | The difference between the maximum(or the minimum) and the means is n more than 0.05mm in ten times of actions | |||
| Protection degree of enclosure | IP65 GB4208-84 | |||
| Vibration resistance | frequency:10~55Hz accelerated speed:10g(90M/S) Amplitude :0.75mm | |||
Code name for operation mode
| Z | Plunger-type, autonmatic reset |
| L | Roller plunger-type,automatic reset |
| B | Roller rotary arm type,automatic reset |
| T | Adiustable roller rotary arm type, automatic reset |
| J | Adjustable metal pendulum arm type, automatic reset |
| D | Elastic pendulum arm type, automatic reset |
| H1 | Fork type, two wheels at same direction, no automatic rest |
| H2 | Fork type, left wheel front, right wheel back, no automatic rest |
| H3 | Fork type, right wheel front, letf wheel back, no automatic rest |
| W | Universal type, automatic reset |
The detail of LXK3 travel switch
Characteristic/Application
The product is to service at such control circuit as AC50~60Hz, voltage of 380VAC or
220VDC and current of 10A to automatically control machine tool, limit movement and
action of drive mechanism and control program.
The nominal service conditions include an ambient temperature of -25℃+40℃, an
ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It
complies with the standard of IEC337-1 and GB14048.5-2001.
