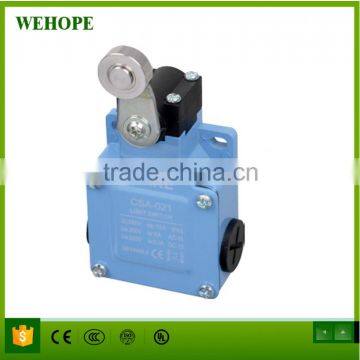

Stainless steel idler wheel, punch and spring CSA Limit Switch
Negotiable
/ Piece
100 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- NINGBO/SHANGHAI
- T/T Credit Card
You May Like
-
CSA roller arm type limit switch
-
CE certificate CSA types of electrical limit switches
-
China Wholesale with ROHS/CE certificate limit switch 8108
-
Wholesale Long life electrical switch CLS roller plunger limit switch
-
Economical & plastic type CLS limit switch az-8104
-
IP65 adjustable stainless steel roller CLS electrical limit switch
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WEHOPE | |
| Model Number | CSA | Protection Level | IP66 | |
| Operating Temperature | -5℃~+65℃ (with no icing) | Max. Current | 10A | |
| Max. Voltage | 250V |
Product Description
Main technical parameters for Stainless steel idler wheel, punch and spring CSA Limit Switch
| Model | CSA | CSA-001 CSA-003 | CSA-012 | CSA-021 CSA-031 CSA-041 CSA-051 | CSA-061 CSA-071 CSA-081 |
| Operating force | OF(Max.) | 700g | 500g | 400g-cm | 150g |
| Release force | RF(Min.) | 200g | 100g-cm | 100g-cm | 50g |
| Pre-travel | PT(Max.) | 1.8mm | 20° | 20° | 30mm |
| Tripping position | TP±10% | 2.0mm | 22.5° | 22.5° | 22.5° |
| Movement differential | MD(Max.) | 1.2mm | 10° | 10° | 14° |
| Over travel | OT(Min.) | 4.0mm | 75° | 75° | 20mm |
| Total travel | TT(Min.) | 5.8mm | 95° | 95° | 50mm |
| Rotary indexing | 22.5° |
Characteristic/Application
| Double Break Mechanism | INO+INC Force Break snap action |
| Rated Voltage / Current | 10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4 |
| Contact Resistance | 25mΩ max. (initial value) |
| Insultation Resistance | 100mΩ min. (at 500VDC) |
| Dielectric Strength | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| Electrical Life | 500,000 at 10A 250VAC Resistive |
| Mechanical Life | 10, 000, 000 operations min. (under rated conditions) |
| Operating Speed | 5mm/s to 0.5m/s |
| Degree of Protection | IP66 |
| Ambient Temperature Rised | Max 30℃ over ambient temperature at rated voltage/current |
| Conformed Standards | Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
| Operating Temperature | ‘-5℃~+65℃ (with no icing) |
| Storage Temperature | ’-5℃~+65℃ (with no icing) |
| Ambient Operating Humdity | 95% RH Max. |
| Shock Resistance | Mechanical durable: 1000m/s2 min. |
| Malfunction: 300m/s2 min. | |
| Vibration Frequency | Malfunction: 10 to 55Hz, 1.5mm double amplitude |
| Terminal Screw Torsional Force | 6-8 kgf-cm |
| Other Screw Torsional Force | Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
| Bare Wire Diameter | φ2 Max |
| Cable Diameter | φ12 Max(IP 65 if use cable φ8-9) |
| Note: Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring. | |
The detail of Stainless steel idler wheel, punch and spring CSA Limit Switch
Product introduction
1.Strong metal outer shell, swing arm max.±95°
2.Stainless steel idler wheel, punch and spring
3.Selective M18x1.5 cable gland
