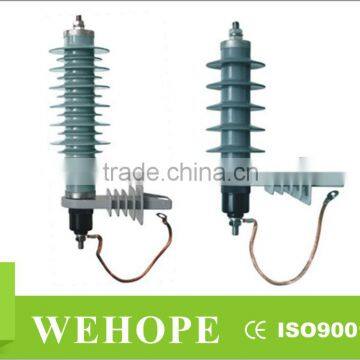

11KV 5KA metal oxide gapless surge arrester
- 15000 Piece / Pieces per Month
- SHANGHAI OR NINGBO
- T/T
You May Like
-
VS1-12 11KV Indoor High voltage vacuum Circuit Breaker(VCB)
-
ZW32-12 24KV outdoor High voltage vacuum Circuit Breaker(VCB)
-
GW4-12/17.5/40.5 high voltage outdoor electric isolator switch/disconnect switch
-
GW5 Outdoor Disconnector/disconnect switch/isolator switch
-
FN7-12(R)DL Series 12KV Indoor High Voltage Load Break Switch
-
high voltage fuse/hrc fuse/ceramic fuse
Product Details
| Place of Origin | Zhejiang, China | Brand Name | WEHOPE surge arrester | |
| Model Number | HY5W-24 surge arrester |
Product Description
Specifications
surge arrester1.Current: 5kA, 10kA
2.Rated voltage: 3kV to 220kV
3.ISO9001,KEMA Certificate
4.high quality
Main technical parameters for HY5W-11 High voltage surge arrester
Type | Rated Voltage | MCOV KV(rms) | Current impulse Residual Voltage | 2000μs wave impusle current withstand KV(crest) |
4/10μs High current impulse withstand KV(crest) | |||
Steep current impulse | switching current impulse | 8/20 μs Lighting current impulse KV(crest) | ||||||
| HY5W-3 | 3 | 2.55 | 9.5 | 7.7 | 9 | 100 | 65 | |
| HY5W-6 | 6 | 5.1 | 19.5 | 15.4 | 18 | 100 | 65 | |
| HY5W-9 | 9 | 7.65 | 28.5 | 23.1 | 27 | 100 | 65 | |
| HY5W-10 | 10 | 8.4 | 36 | 30 | 23 | 150 | 65 | |
| HY5W-11 | 11 | 9.4 | 40 | 33 | 30 | 150 | 65 | |
| HY5W-12 | 12 | 10.2 | 38.0 | 30.8 | 36 | 100 | 65 | |
| HY5W-15 | 15 | 12.7 | 47.5 | 38.5 | 45 | 100 | 65 | |
| HY5W-18 | 18 | 15.3 | 57.0 | 46.2 | 54 | 100 | 65 | |
| HY5W-21 | 21 | 17.0 | 66.5 | 53.9 | 63 | 100 | 65 | |
| HY5W-24 | 24 | 19.2 | 76.0 | 61.6 | 72 | 100 | 65 | |
| HY5W-27 | 27 | 21.9 | 85.5 | 69.3 | 81 | 100 | 65 | |
| HY5W-30 | 30 | 24.2 | 95.0 | 76.5 | 90 | 100 | 65 | |
| HY5W-33 | 33 | 26.8 | 104.5 | 84.7 | 99 | 100 | 65 | |
| HY5W-36 | 36 | 29 | 114.0 | 92.4 | 108 | 100 | 65 | |
| HY5W-42 | 42 | 34.1 | 132.3 | 100.1 | 126 | 100 | 65 | |
Sevice Conditions
1.Ambient air temperature within the range of -55°C to +50°C.
2.Altitude not exceeding 2000m.
3.Frequency of the A.C. Power supply not less than 48hz and not exceeding 62hz.
4.Power frequency voltage applied continuous between the teminals of the arrester not exceeding its continuous operating voltage.
5.Maximum wind speed not exceeding 35m/s.
6.Earthquake intensity not exceeding 7 degrees.
Product's advantage
- Low residual voltage
- Long protection distance
- High energy input capacity
- Stable U-I characteristics even after multiple strokes
- Proof against ageing
- Explosion and shatter-resistant design
- Pollution resistant and UV-stable
- Housing resistant to rough handling
- Maintenance free
- Stable against shock and vibration
- High mechanical resistance
Products Details
Packaging:
The packing of surge arrester is Standard Export Carton or according to your requirements.
Shipping:
normally ocean shipping
The delivery date of the surge arrester is within 20-30 days after receiving payment.
Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English
3.OEM&ODM, any your customized breakers we can help you to design.
4.Distributorship are offered for your unique design and some our current models
5.Protection of your sales area, ideas of design and all your private information
FAQ
Q 1. what's the payment term?
A. We accept TT, 30% deposit and 70% balance agaisnt copy of BL, Western
Union ,L/C is ok!
Q 2. how's the delivery time ?
A. usually it will take about 15~20 days for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton.
Q 4.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q6. How about the transport?
A. If the number of goods is small we usually use TNT, TNT-DHL,EMS,DHL and some express you offered. If the number of the goods is big usually we use the FWD you offered. Either by sea or by air is OK.
Q7. What is the different between HOUPU and WEHOPE ?
A. HOUPU is my company name and the WEHOPE is brand name of our products.
