Bct-0750 Toroidal Solid Core Current Transformer 333mV Output For Cable Current Monitoring
US$ 2.9 - 9
/ Piece
5 Pieces(Min. Order)
- T/T
- 7 days
You May Like
-
1000A/5A Split Core Flexible Rogowski Coil with High Frequency
-
OEM 3000A/0.333V Rogowski Coil Split Core CT Power Energy Metering
-
CE Split Core Flexible Rogowski Coil 5A Output For Energy Meter
-
High Frequency Power Quality Monitoring Rogowski Coil 2000A/0.333V
-
IP67 Waterproof Outdoor Split Core toroidal Current Transformer I.D.36mm
-
Sct-T24 Miniature Split Core Current Transformer (100-300A)
Product Details
| Certification | ISO9001 | Application | Power, Electronic, Instrument | |
| Usage | Single-phase Transformer | Phase | Single | |
| Transport Package | Cartons | Specification | Piece | |
| Trademark | Elecsprk | Origin | China |
Product Description

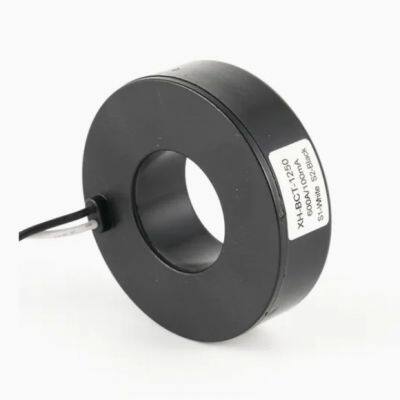

solid core current transformer
Jiangyin Spark XH-BCT Series of Solid Core Current Transformer design for better accuracy for 0.333V output .5 standard models for your choice. Measure current from 5Amp to 600 Amp.Solid core CTs are more accurately , small in size, and very cheap .If mA sendary output ,accuracy can be 0.1%
Specifications:
1. Rated input current from 5A to 600A
2. 0.333V AC or other mA ,mV output at rated current
3. Accuracy ±0.5% or 0.1%
4.Insulation Voltage:5400V, CATIII 600V or CATIV 250V
5.Accuracy at 10% to 130% of rated current
6.Rated Frequency:50HZ or 60HZ;
7.RoHS Compliant
8.Operating Temperature:-40oC to +55oC
9.Flame resistance:UL94-V0;
10.Tensile force value: 9.08 kg(89N) for 1 minutes;
| Model | I.D. | Rated Amps | Output | Outside Diameter | Height |
| XH-BCT-0300 | 0.39 in. 0.76 cm | 1A to 50 | mA or 0-5V output | 1.70 in. 4.32 cm | 0.75 in. 1.91 cm |
| XH-BCT-0500 | 0.50 in. 1.27 cm | 5A to 150A | mA or 0-5V output | 1.90 in. 4.83 cm | 0.75 in. 1.91 cm |
| XH-BCT-0750 | 0.75 in. 1.91 cm | 10A to 250A | mA or 0-5V output | 2.10 in. 5.33 cm | 0.75 in. 1.91 cm |
| XH-BCT-1000 | 1.00 in. 2.54 cm | 50A to 400A | mA or 0-5V output | 2.40 in. 6.10 cm | 0.80 in. 2.03 cm |
| XH-BCT-1250 | 1.25 in. 3.18 cm | 50A to 600A | Ma or 0-5V output | 2.70 in. 6.86 cm | 0.80 in. 2.03 cm |
