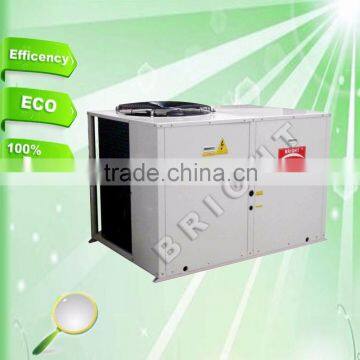

(High ESP) Packaged Roof Top Units
- tianjin
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | bright | |
| Model Number | W(R)F 035 -600 | Type | HVAC Systems |
Product Description
Features:
² 23 sizes available ranging from 9.9 kW to 188.5 kW cooling capacity
² Cooling only and heat pump versions
² Front, side and underside air discharge of the treatment unit
² High external pressure, long air supply distance
specifications:
Model | WRF18Z | WRF32Z | WRF42Z | |
Power | 380V/3PH /50Hz | |||
Cooling Capcaity (kW) | 17.6 | 32.4 | 41.6 | |
Heating capacity (kW) | 18.8 | 34.6 | 44.6 | |
cooling power input (kW) | 6.49 | 12.4 | 14.8 | |
Heating power input (kW) | 5.89 | 11.57 | 13.76 | |
Starting current (A) | 66 | 59.9 | 87.9 | |
Fan (condenser) | Power input (kW) | 0.37 | 0.55 | 2*0.45 |
Air flow (m2/h) | 7200 | 12300 | 18800 | |
Fan(evaporator) | Power input (kW) | 0.7 | 1.5 | 2.2 |
Air flow (m2/h) | 2920/1900/1510 | 6300 | 7900 | |
Noise level dB(A) | 71.7 | 72 | 72 | |
Dimensions(mm) | 1660*1040*1045 | 2240*1390*1045 | 2540*1860*1195 | |
Liquid Quantity(Kg) | 5.3 | 9 | 8+ 4.2 | |
Net weight (kg) | 360 | 520 | 755 | |
Compressor Brand | Hanbell/ Fusheng/ Bitzer | |||
* Performance values refer to the following conditions:
Cooling: room air temperature 27.0°C DB / 19°CWB, ambient air temperature 35°C DB / 24°CWB
Heating: room air temperature 20.0°C DB / 15°CWB , ambient air temperature 7°C DB / 16°C WB.
** Noise level measured by adopting average value in the noise lab with background noise of 25 dB(A), at a distance of 1.5m high fan speed.
Product shows:
packaging:
Factory shows:
A total area of 600,000 square meters and 200,000 square meters for workshop
Inside workshop:
Established in 1987, BRIGHT has specialized in air conditioner, HVAC system & parts as a the leader in north of china.
BRIGHT is provided with Quality certification according to ISO 9001:2000 and ISO14001:2004.
Featured products:
Contact Us
- Bright Air Conditioning Co., Ltd.
- Contact nameBilly Huang Chat Now
- Phone86-534-2299956
- AddressNo. 3379 jinghua road, dezhou, shandong, Dezhou, Shandong
