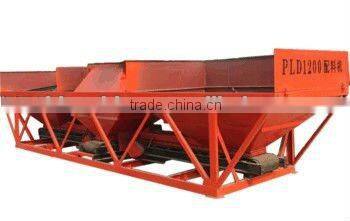

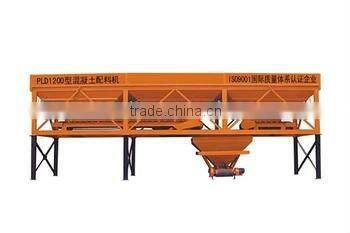

High Efficiency PL1200 Concrete Batching Machine
- Shanghai or others ports of China as ur request
- T/T Credit Card
You May Like
-
PLD Series Electronic Mobile Concrete Batching Machine Used for Mixing Plant
-
PLD Series Electronic Mobile Concrete Batching Machine0 Used for Mixing Plant
-
PLD Series 1200 Electronic Concrete Batching Machine
-
PLD1200 Electronic Weighing Concrete Batching Machine
-
2012 Hot Sell! Mobile Concrete Batching Machine PLD1200, Electronic Weighing, Computer Control
-
JS Series Electronic Portable JS1000 Concrete Mixer
Product Details
| Place of Origin | Henan, China | Brand Name | Bizoe | |
| Model Number | PLD1200 |
Product Description
Specifications
1: this is an electronic weighing concrete batching machine with super quality2: best price
3: portable, can be moved
Introduction:
1. Brief Introduction of PLD1200 Electronic Weighing Concrete Batching Machine
PLD1200 Concrete Batching Machine is a kind of front-desk automatic batching equipment equipped with the mixer. This concrete batching machine can finish automatically the batching process of sand, stone, cement etc. 3~6 kinds of material according to the cement proportion designed by user. This concrete batching machine can batch materials to one or two mixer, so it effectively improves the working efficiency.
2. Salient Features of PLD1200 Electronic Weighing Concrete Batching Machine
PLD1200 Concrete Batching Machine adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. PLD1200 Concrete Batching Machine is widely used in all kinds of large and medium-sized construction project and concrete mixing station.
3. Technical Parameters of PLD Series Electronic Weighing Concrete Batching Machine
Model | PLD800 | PLD800 | PLD1200 | PLD1200 | PLD1600 | PLD1600 |
-2 | -3 | -3 | -4 | -3 | -4 | |
Volume of Scale Hopper (L) | 800 | 800 | 1200 | 1200 | 1600 | 1600 |
Volume of Storage Bin (L) | 2000*2 | 2000*3 | 3000*3 | 3000*4 | 6600*3 | 6600*4 |
Theoretical Productivity (m3/h) | 48 | 48 | 70 | 70 | 80 | 80 |
Batching Precision | ≥2% | ≥2% | ≥2% | ≥2% | ≥2% | ≥2% |
Max. Weighing Value (KG) | 2000 | 2000 | 2400 | 2400 | 3000 | 3000 |
Aggregate Sorts | 2 | 3 | 3 | 4 | 3 | 4 |
Feeding Height (mm) | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 |
Belt Speed (m/s) | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 | 1.25 |
Power (KW) | 3*3 | 4*3 | 4*3 | 5*3 | 4*3 | 5*3 |
Dimension (L*W*H)m | 6*1.8*2.8 | 8.6*1.8*2.8 | 9.6*2.1*3.2 | 12.8*2.1*3.2 | 10*2.1*3.3 | 13.2*2.1*3.3 |
Weight (KG) | 2450 | 3100 | 3800 | 4500 | 6700 | 7800 |
