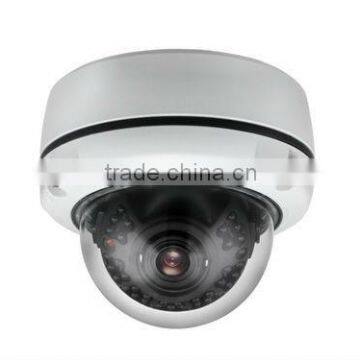

5.0 MP 1080P IR VANDALPROOF DOME CAMERA

F

Model No.

HD50VDYV

General Function

Feature

HD-Low Illumination

CMOS Type

Aptina Imaging CMOS

CMOS Model

1/2.5″500MP

HD Output

Image Adjustable

1080P:2560×1920P

720P:1280×720P

D1:640×480

Illumination

Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON)

IR Distance

40M(42pcs black IR led)

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Lens

Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens

Exposure Control

DSP Auto Adjust

AGC & WB

AGC:Auto(high, media, low )    White Balance:Auto,Close

S/N Ratio

≥50dB

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support

Agreement

Support Onvif2.0,PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS

Dual Stream

Dual Stream Transfer(H.264)CBR/VBR Adjustable Main Stream(1M~8Mbps)With Local Skim, SD Card etc. Sub-Stream(0.5MK~2Mbps)With Network Transfer.

Upgrade maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Charge for optional, Adapting WIFI and P2P Intelligence Mobile Phone Visit

Special function

Optional Function

Charge for optional: POE and TF card storage

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image By Mouse

4 Adjustment

Built In 4Bracket, Adjust the Surveillance Angle at Any Position Easily

Vandal Resistant

High Strength Aluminium Casting Alloy,“0°Warp Ray Rate” Acrylic Gauge Cover

Flush Mount

Adopt Flush Mount, More Secluded, Artistic, Safety

Waterproof Grade

Constant Force Soft Plug at Fitting Up Joint, IP66

Intelligent Alarm

Motion Detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.

Video efficiency

Effective Pixel

1280*1080

Video Frame Rate

50Hz/60Hz: 25fps,30fps,50fps,60fps etc

Image Capture

JPEG for Local Storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Encoding

With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed

Audio Function

Audio Broadcast Audi playback

Mount Standard

Power Mount

DC Female Connector,5.5×2.1mm

Network Mount

1ch 10M/100M Ethernet Mouth, RJ45 Mount

Video Output

1ch local analog output, BNC interface.

Alarm Mount

1ch Alarm Input 1ch Alarm Output

Audio Mount

1ch Audio input 1ch Audio Output

RS485 Mount

1ch RS485 mount

Other standard

Working Enviroment

Enviroment Temperature-10°C~+60°C Camera Temperature: 25°C~35°C Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W

size(mm)

Products Size:155 × 155 × 130 mm   Carton Size:580 × 430 × 380 mm(22 CTN)

weight

Net Weight:1.45 Kg~1.55 Kg     Gross Weight:31.90 Kg~34.10 Kg
