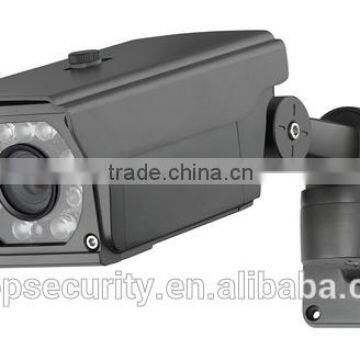

60m IR Waterproof IP Camera with WDR Optional

F

Model

HD20IRBK

Basic Function

Feature

Low illumination

CMOS Type

Aptina Imaging CMOS

CMOS Model

1/3″1.3Mega HD

HD Output

Image Adjustable

960P:1280×960P

720P:1280×720P

D1:640×480

Illumination

Color 0.1Lux/B/W 0.01Lux(F1.2,AGC ON)

IR Distance

Standard 9pcs Laser IR Led ,60M IR Distance

Shutter Speed

IR-CUT

Lens

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Exposure Control

Std:9-22mm(F1.2 /M12Mount)Mega HD Lens

AGC & W/B

DSP Auto Adjust

S/N Ratio

Auto

Feature

≥50dB

Network Function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support Agreement

Support Onvif2.0, PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS etc.

Dual Stream

Dual Stream Transfer(H.264,CBR/VBR Adjustable.

Main Stream(1M~8Mbps)With Local Skim, SD Card etc.

Sub-Stream(0.5MK~2Mbps)With Network Transfer, 3G Visit.

Upgrade maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Adapting WIFI or 3G,Adapting P2P Intelligence Mobile Phone Visit

Special Features

Optional Function

Paid Option:POE

3-Axix

With portable & fast 3- Construction for Adjust.

Adjustable Window

On the Down Side of Unit for Adjust Menu

Vandal Proof Housing

Metal Vandal Proof Body, Dual Ring Transparent Glass

Waterproof

Strong Waterproof Stopper for IP67

Smart IR

Intelligence Prevent IR light Over Exposure

Smart Alarm

Motion detect,Video Shelter,I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.

Video Efficiency

Video Frame Rate

1280×720P

Effective Pixel

50Hz/60Hz: 30fps,25fps

Image Capture

JPEG for local storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Function

With G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed

Audio Output frame

Audio Cast, Tack Back

Mount

Power supply mount

DC Female Mount,5.5×2.1mm

Network Mount

1 ch10M/100M for Ethernet,RJ45 Mount

Video Output

1ch Local Analog Output,BNC Mount

Alarm Mount

1ch Alarm Input,1ch Alarm Output

Audio Mount

1ch Audio Input,1ch Audio Output

RS485 Mount

1ch RS485 Mount

Others

Work Temperature

Circle Temperature:-10°C~+60°C   Body Temperature:25°C~35°C

Work Humidity:<90% (No Condensation)

Power Consumption

DC 12V±5% ,IR ON: 8W

Size (mm)

Unit Pack:380 × 155 × 110 m

Weight(Kg)

Unit Weight:1.85 Kg~1.95 Kg
