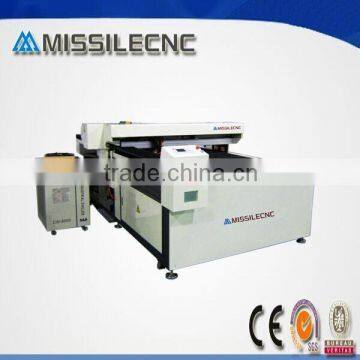

jinan Missile hot sale 1325 metal co2 laser cutting machine

Features

1. Missile metal & nonmetal cutting machine adopting imported linear guides, all-round ball screw transmission with highest accuracy .

2. Servo motion system, processing, stable operation, low noise .

3. High power CO2 Laser tube, high light extraction efficiency, small spot, long time light extraction in very stable state .

4. Using the color control system, diverse data transmission, easy to use , powerful functions, can be off-line or online .

5. Using the industrial refrigeration system to ensure the life of the laser, lower maintenance rate.

6. The unique design of untouched following system, consistent with the focal length of the beam, to ensure that the cutting surface of the gap is small and smooth.

MS - 1325

MS - 1530

MS - 2030

Working size

1200 * 2500 mm

1500 * 3000 mm

2000 * 3000 mm

Machine size

1950 * 3650 * 1300 mm

2250 * 4150 * 1300 mm

2650 * 4150 * 1300 mm

Resolution

±0.01 mm/min

±0.02 mm/min

±0.03 mm/min

Running speed

20m/min

20m/min

20m/min

Net weight

900 kg

1300 kg

1500 kg

Working voltage

220V±10%20A

220V±10%20A

220V±10%20A

    150W

    260W

                 320W

Cutting gas

  Oxygen

   Oxygen

    Air

Oxygen

Nitrogen

0.6mm stainless steel

 4-5.5m/min

  7-8m/min

 3-3.5m/min

8-10m/min

1.8-2.4m/min

0.8mm stainless steel

 3.5-5m/min

  5-6m/min

 1.8-2.5m/min

4.8-6.5m/min

1.8-2.4m/min

1.0mm stainless steel

 2.5-4m/min

  4-5m/min

 1.8-2.5m/min

3.6-4.8m/min

1.6-0.9m/min

1.5mm stainless steel

 1.2m/min

  3-4m/min

 4-5.5m/min

4-5.5m/min

2.0mm stainless steel

  1-2m/min

 1.9-1.2m/min

1.8-2.5m/min

1.0mm carbon steel

 2-3m/min

  4-5m/min

 2.5-3.5m/min

4.8-6m/min

2.0mm carbon steel

 1.5-1.2m/min

  2-3m/min

 2.5-3m/min

3.8-5.5m/min

3.0mm carbon steel

  1-1.5m/min

 0.6-0.8m/min

1.2-2.5m/min

0.6mm galvanized sheet

 3-4.2m/min

  4.2-5.4m/min

 1.8-2.8m/min

4.8-7.2m/min

1.2-2.2m/min

1mm galvanized sheet

 1.2-2.8m/min

  2.4-3.6m/min

 0.6-1.2m/min

3.6-4.8m/min

0.3-0.6m/min

1.5mm galvanized sheet

 1.05-2.2m/min

  1.2-2.8m/min

 0.3-0.6m/min

1.6-3.6m/min

2mm galvanized sheet

  1.1-1.8m/min

1.5-2.4m/min

Cutting Gas

   Air

  Air

   Air

10mm Acrylic

 0.3-0.3m/min

  0.6-0.8m/min

0.9-1.2m/min

20mm Acrylic

 0.1-0.15m/min

 0.12-0.24m/min

0.18-0.26m/min

30mm Acrylic

 0.06-0.15m/min

0.08-0.25m/min

40mm Acrylic

 0.03-0.12m/min

0.04-0.15m/min

5mm  MDF

 1.5-1.8m/min

 1.8-2.4m/min

2.2-2.8m/min

10mm MDF

 0.72-1.1m/min

 0.9-1.5m/min

1.1-1.8m/min
