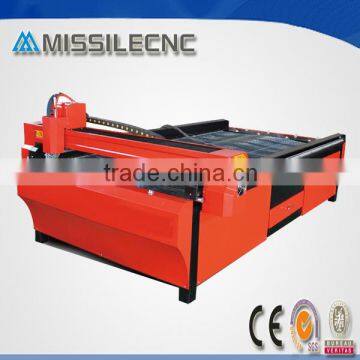

jinan missile 1325 1530 cnc plasma cutting machine price

FOB Price

USD $4,150 - $4,500 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	MISSILECNC	Model Number	1325
Voltage	AC380v	Rated Power	Huarong63A
Dimension(LWH)	388021502000mm	Weight	800kg
Certification	CE BV	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

jinan missile 1325 1530 cnc plasma cutting machine price

Features:

Missile CNC Plasma PM01/02 is very simple to operate ang a good choice for customers.

We use Huarong/Huayuan/Hypertherm power generator according to your request. We offer different power generator according to your request.

The controller is an offline control system and you can choose the standard designs from the system program.

The system has automatic height control function, this greatly help processing the material which is not flat.

Options:

On request, we can build the machine with a different working size.

Different generator brands can be supplied

Parameter:

Model	Description	PM01/02
1	X,Y,Z working area	1300X2500X100mm
2	Working material	steel, aluminum, stainless steel
3	Z axis clearance	100mm
4	Working thickness	≤3mm
5	Plasma power	Huarong, Huayuan, USA Hypertherm
6	Input current	63A
7	Cutting accuracy	±0.5mm
8	Repeatability	0.05mm
9	Cutting speed	0-10m/min
10	Travel speed	0-20mmin
11	Input voltage	380V, 3ph or 220V, 3Ph
12	Transmission	Rack pinion
13	Driving system	Stepper system
14	Power frequency	50Hz
15	File transmission	USB( interface)
16	Arc mode	Non-contact arc
17	able type	Teeth and water table
18	Weight	USB 1000KGS
19	Packing size	3330X1920X1620mm
20	Gross weight	1200KGS

Application

Mainly used on cutting workshops as Channel letter, parts cutting

Sample

After-sales service:

1. One year warranty for whole machine.

2. 24-hour technical support by email or calling

3. User-friendly English manual for machine using and maintaining

Should you have any questions, please contact me.
