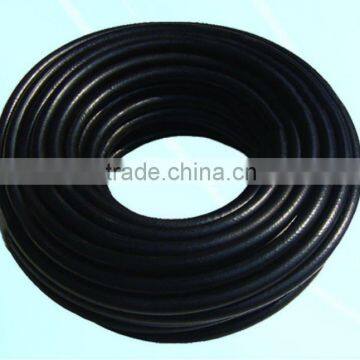

SAE J30 R6 FUEL HOSE
- Tianjin
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Pinlide |
Product Description
Specifications
Temperature range: 25oC-70oC/40oC-70oCSafety factor: 7:1
Inner tube: NBR,Black, Smooth.
Reinforcement: Fine wire reinforc
Fuel hose widely used to tranfer the gasoline,diesel etc. And we have exported to many countries.
FUEL HOSE is mainly used in the fuel dispenser and tank. We are the specialist in rubber hose and hose assembly for measured fuel dispensing system. We can produce according many standards, HG/T 3037, EN 1360 and UL 330. Were the only supplier to many world-famous fuel dispenser manufacturer. Our domestic market share is above 90%.
Application:
Suitable for gasoline and diesel fuel, including oxygenated fuels (up to a maximum of 15% oxygenated compounds), gasoline with small amounts of additives etc
NOW WE HAVE ENCLOSED THE PART OF OUR SPECIFICATIONS AS FOLLOWS,
Nominal Size | Hose Size | Working Pressure (max.) | Proof Pressure | Bursting Pressure (min.) | Bending Radius (min.) | Weight Approx. | Appearance | ||||||||
I.D. | O.D. | Smooth | Wove | ||||||||||||
Inch | mm | mm | Psi | MPa | Psi | MPa | Psi | MPa | inch | mm | Kg/m | Black | Colour | Black | Colour |
5/8 | 16 | 27 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 3.1 | 80 | 0.6 | √ | √ | √ | √ |
3/4 | 19 | 30 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 3.9 | 100 | 0.7 | √ | √ | √ | √ |
7/8 | 22 | 33 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 5.1 | 130 | 0.82 | √ | √ | √ | √ |
1 | 25 | 37 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 5.9 | 150 | 0.98 | √ | √ | √ | √ |
1 1/4 | 32 | 44 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 6.9 | 175 | 1.16 | √ | √ | ||
1 1/2 | 38 | 50 | 232 | 1.6 | 348 | 2.4 | 696 | 4.8 | 8.9 | 225 | 1.36 | √ | √ | ||
