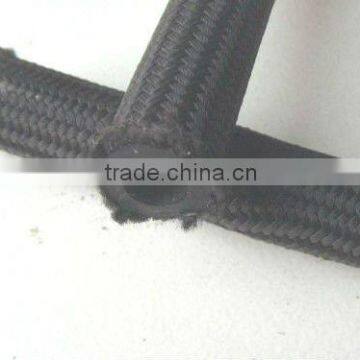

Gasoline Fuel Hose Cotton Overbraided Cover
- 12000 Meter / Meters per Month
- Xingang(Tianjin)
- T/T Credit Card
You May Like
Product Details
| Usage | Gasoline Delivery | Size | Custom Dimensions | |
| Car Make | Most Current Cars | OE NO. | N/A | |
| Place of Origin | Hebei, China | Brand Name | PINLIDE | |
| Model Number | HA-BH-1 |
Product Description
Specifications
Fuel HoseFuel Resistance
DIN 73379 Type B Standards
High Tensile Braided Textile Cover
ISO/TS 16949:2009 Registered
Application: For delivery of fuel/oil under low pressure
Tube: Fuel resistanct synthetic nitrile rubber
Cover: High tensile braided textile
Temperature Range: -40°C to +90°C
Most Popular Fuel Hose with Cotton Overbraided Cover Sizes:
Packing: wrapped in polythene film
INSIDE DIAMETER | OUTSIDE DIAMETER | WORKING PRESSSURE | Weight/m | |
mm | mm | BAR | PSI | g |
3.2 | 7 | 10 | 145 | 45 |
3.5 | 7.5 | 10 | 145 | 50 |
4 | 9 | 10 | 145 | 75 |
4.5 | 9.5 | 10 | 145 | 80 |
5 | 10 | 10 | 145 | 85 |
5.5 | 10.5 | 10 | 145 | 90 |
6 | 11 | 10 | 145 | 95 |
7 | 12 | 10 | 145 | 105 |
7.5 | 12.5 | 10 | 145 | 110 |
8 | 13 | 10 | 145 | 115 |
9 | 14 | 10 | 145 | 130 |
10 | 15 | 10 | 145 | 140 |
12 | 18 | 10 | 145 | 200 |
Hebei Hongan Automobile & Motorcycle Fittings Co., Ltd. offers a wide range of rubber hoses made of EPDM, NBR, CR, ECO, VMQ, HNBR, Fluorosilicone rubber, NR.
- Radiator Hose (SAE J20 R 4)
- Heater Hose (SAE J 20 R 3)
- Fuel & Oil Hose (SAE J 30 R6, R7)
- Silicone Hose (All kinds meeting SAE J20 R 4)
- Flexible Radiator Hose (SAE J20 R5)
- Breather Hose
- Wrapped Rubber Hose
- Outside Braided Hose
Our quality system is ISO/TS 16949 certified, and this gives us the ability to serve motor vehicle manufactures in the past five years.
Believing in success underpinned by the success of our customers, we continously improve our management and quality so we are able to offer competitive prices to our customers.
Please do not hesitate to contact Hebei Hongan if you have any question about automotive rubber hoses, we are ready to help you.
