Home > Products > Metal Wire Series > Electro Galvanized Iron Wire
Electro Galvanized Iron Wire
- Tianjin Port China
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Keaohua, Keaohua | |
| Model Number | KAH21000 | Material | Other, Iron, Low Carbon Steel Wire |
Product Description
Hot Dipped/Electro Galvanized Iron/Steel Wire
Hot-dip galvanized iron wire
Hot-dip galvanized iron wire is made with choice low carbon steel wire, through wire drawing, anealing, acid washing and rust removing, zinc coating and coiling. It’s mainly used in construction, binding wire, handicrafts, woven wire mesh, express way fencing mesh, agriculture shelf, packaging of products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 30-360g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Packing: 1-1000kgs/coil, coil with plastic cloth inside and hessian outside or weave outside

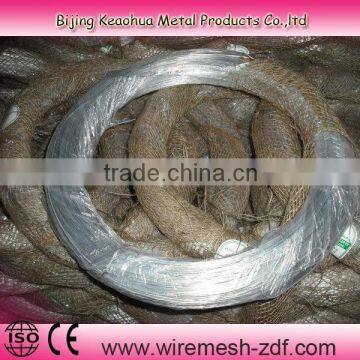

Electro galvanized iron wire
Electro galvanized iron wire is made with choice mild steel, through wire drawing, anealing, acid washing and rust removing, zinc coating and coiling . Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22, we can also offer BWG 8-BWG 28
Zinc coat: 10-30g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Packing: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave cloth outside
Specifications
| Electro galvanized wire | Hot dipped galvanized wire | |
| Specification | 0.2-4.0mm | 0.55-5.0mm |
| Zinc rate | 7-18g/m2 | 40-365g/m2 |
| Tensile strength | 30kg-55kg/m2 |
| Elongation rate | 10%-30% |
| Weight/coil | 0.1kg-1000kg/coil |
| Packing | In roll-plastic inside and hessian woven outside In roll-plastic inside and nylon woven outside Or in U type ,straight cut,and bobbin |
Wire gauge list
| Wire gauge size | SWG (mm) | BWG (mm) | Metric(mm) |
| 8 | 4.06 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | - |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | - |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.89 | 0.90 |
| 21 | 0.81 | 0.813 | 0.80 |
| 22 | 0.71 | 0.711 | 0.70 |
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, then green PVC coated, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
Galvanized iron wire; electro and hot dipped galvanized, wire dia: 2-5mm, zinc coating: 10-360g/m2,
coil length:500/1000/1200m,
