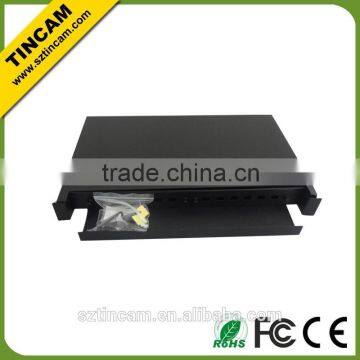

1U SC 24 port Patch Panel/ODF 19'' Rack wall mount Fiber Patch Panel

  1U SC 24 port Patch Panel/ODF 19'' Rack wall mount Fiber Patch Panel

Specifications

latest modle Pull type 24 Cores ODF
1.19 inch or 23 inch
2.1U- 4U Size
3.verified company&OEM

Features:

1. Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.

2. With splice trays in the box and integrate heat sealing and wiring into one.

3. Apply double-sided structured optical fiber splice tray  to make full use of the two sides of the board.

4. It's suitable for ribbon or non-ribbon optical fiber cable.

5. Every tray can be clamped with 12FC/SC/ST adaptors.

6. Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time

Parameters:

Optical Fiber Distribution Frame and Benefits:

• Versatile panel with extendable double slide rails for smooth sliding
• 1RU suitable 2-4pcs KNC standard adapter plates at different size
• Silkscreen printing on the front aperture for fiber identification
• Comprehensive accessory kit for cable entry and fiber management
•  Able to hold MTP (MPO) loaded cassettes
• Customize design available

Optical Fiber Distribution Frame Applications:

• Suitable for fusion splicing, direct termination and pre-terminated cables
• 1RU, 2RU, 3RU 4U and High Density versions optional
• Suitable for 19”; 21” and 23” racks
• Full assembly (loaded) or empty panel optional

Specification
