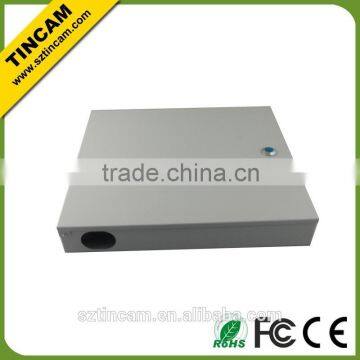

24 port patch panel, ODF, fiber optic terminal box
- ports in Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TINCAM |
Product Description
24 port patch panel, ODF, fiber optic terminal box
Specifications
latest modle Pull type 24 Cores ODF
1.19 inch or 23 inch
2.1U- 4U Size
3.verified company&OEM
Features:
1. Applied to various of optical fiber distribution frames, distribution cabinets and optical cable cross-connection cabinets.
2. With splice trays in the box and integrate heat sealing and wiring into one.
3. Apply double-sided structured optical fiber splice tray to make full use of the two sides of the board.
4. It's suitable for ribbon or non-ribbon optical fiber cable.
5. Every tray can be clamped with 12FC/SC/ST adaptors.
6. Install adaptors on the face side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time
Parameters:
| Dimension | Height(mm) | Width(mm) | Depth(mm) | Weight(kg) |
| 24core | 70 | 430 | 300 | 5.4 |
| 48core | 140 | 430 | 300 | 7.8 |
| 72core | 200 | 430 | 300 | 10.6 |
| 96core | 255 | 430 | 300 | 12.2 |
Optical Fiber Distribution Frame and Benefits:
- Versatile panel with extendable double slide rails for smooth sliding
- 1RU suitable 2-4pcs KNC standard adapter plates at different size
- Silkscreen printing on the front aperture for fiber identification
- Comprehensive accessory kit for cable entry and fiber management
- Able to hold MTP (MPO) loaded cassettes
- Customize design available
Optical Fiber Distribution Frame Applications:
- Suitable for fusion splicing, direct termination and pre-terminated cables
- 1RU, 2RU, 3RU 4U and High Density versions optional
- Suitable for 19”; 21” and 23” racks
- Full assembly (loaded) or empty panel optional
Specification
Model | Core Count | Height | Dimension(cm) | Weight(kg) |
ODF-R144 | 144 | 7U | 49x30.5x31.15 | 17.1 |
ODF-R96 | 96 | 5U | 49x30.5x22.25 | 11 |
ODF-R72 | 72 | 4U | 49x30.5x17.8 | 9 |
ODF-R48 | 48 | 3U | 49x30.5x13.35 | 7 |
ODF-R36 | 36 | 2U | 49x30.5x8.9 | 5.7 |
ODF-R24 | 24 | 2U | 49x30.5x8.9 | 4.6 |
