Fiber Optic 1*64 ODN SC PLC Splitter
- Shenzhen China
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | TINCAM | |
| Model Number | TBC-PLC |
Product Description

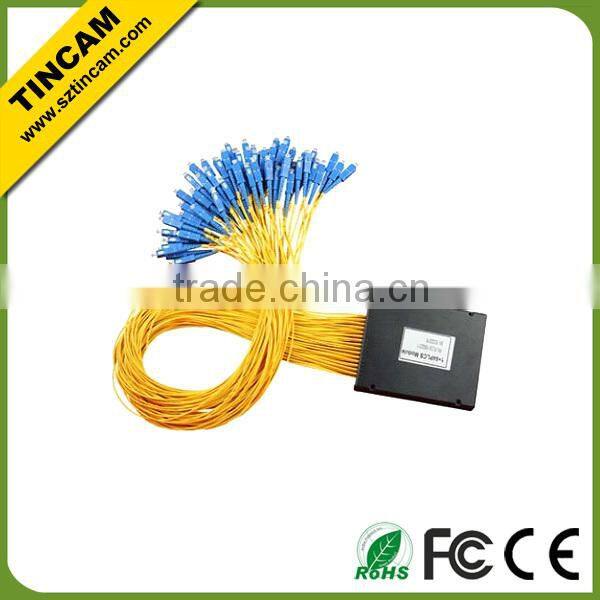

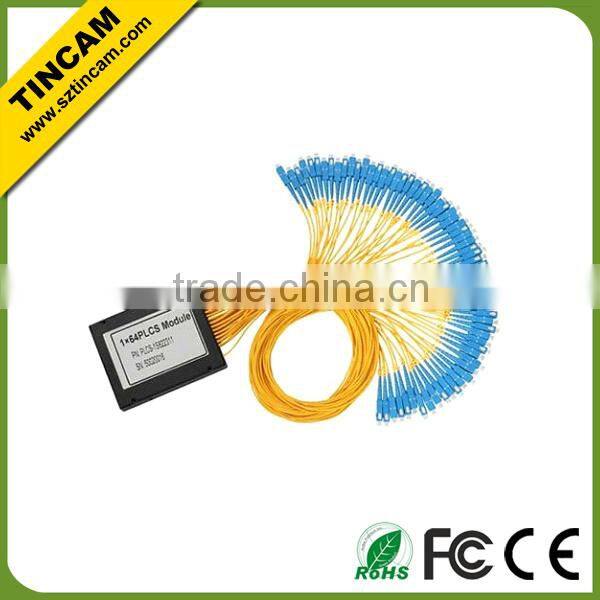

fiber optic 1*64 ODN SC PLC Splitter
DESCRIPTION
PLC (Planar Light wave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels
The PLC splitters are available with one or two input ports and up to 64 output ports.
FEATURE
n Good durability
n Good exchangeability
n High temperature stability
n Low insertion loss
n Available in 1*N & 2*N configuration
n Compact size
n RoHs compliant
APPLICATION
n FTTX (FTTP, FTTH, FTTN, FTTC)
n Passive Optical Networks (PON)
n Local Area Networks (LAN)
n CATV Systems
n Test Equipment
TECHINCAL SPECIFICATIONS
Model number | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
wavelength | 1260-1650 | ||||||
Fiber model | G657A or decided by customer | ||||||
Insertion Loss (dB) | 3.8/4.0 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |
Loss Uniformity(dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.0 | |
Return Loss(dB) | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | 55/50 | |
0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | ||
Directionality(dB) | 55 | 55 | 55 | 55 | 55 | 55 | |
Wavelength dependent loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
temperature stability (-40~85 ℃)(dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
Model connector | SC,FC,ST decided by customer | ||||||
Operating temperature(℃) | -40~85 | ||||||
Storage temperature(℃) | -40~85 | ||||||
Device packaging size (L*W*H | 40×4×4 | 40×4×4 | 40×4×4 | 50×4×4 | 50×7×4 | 60×12×4 | |
Cassette module size (L*W*H) | 100×80×10 | 100×80×10 | 100×80×10 | 120×80×18 | 120×80×18 | 140×115×18 | |
micro module size (L*W*H | 60×7×4 | 60×7×4 | 60×7×4 | 60×12X4 | 80×20X6 | 100×40X6 | |
