300KW 50HZ 6-cylinders types of electric power generator

FOB Price

USD $43,800 - $45,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

300kw types of electric power generator
1/ CE certificate
2/ ISO9001:2000 certificate
3/ one year warranty
4/ OEM manufactor

300kw types of electric power generator General feature:

1.Coupled with Cummins diesel engine and Marathon

alternator

2.24V DC start motor

3.Brushless, Self-excited, IP23, insulation class H alternator

4.All qualified generator sets are subjected to a comprehensive performance test which includes 50% load,

75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.

5.Stability, reliability and easy-service

6.Low operating and maintenance cost

7.Widely used, location to meet customer needs

8.Easy-installation, easy-operation and maintenance

300kw types of electric power generator Main Parameter:

1.Main technical data of Electric Power Generator
1.1	Model	CCFJ300JW
1.2	Prime power	300KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	3750kg
1.6	Overall dimension	3100×950×2080mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	CUMMINS
2.2	Model	KTA19-DM
2.3	Prime power	336KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	159×159 mm
2.8	Displacement	18.9L
2.9	Starting method	Electric
2.10	Fuel consumption	209g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-300-4
3.3	Prime power	300KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H

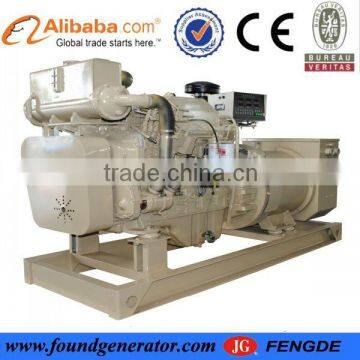

The picture of Electric Power Generator:
