40kw marine diesel generator with best price

FOB Price

USD $8,000 - $12,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	JG small water cooled diesel generator
Model Number	CCFJ40J	Output Type	AC Three Phase
Speed	1500/1800RPM	Frequency	50/60HZ
Rated Power	40KW	Rated Voltage	400V
Rated Current	72A

We are the top VIP supplier on Alibaba !!

Authorized by famous certification authority-BV ( Bureau Veritas ) !!

40kw marine diesel generator

Every gensets have one year global warranty, low fuel consumption and high efficient performance.

Detail Data Sheet

Coupled withdiesel engine and Marathon alternator

24V DC start motor

Brushless, Self-excited, IP23, insulation class H alternator

Genset Main Technical Data

3-PH, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers’ Special Requirements)

Voltage

Phase

P.F

(COS)

Output

(KW)

400/230V

0.8

1.Main technical data of gensets
1.1	Model	CCFJ40JY
1.2	Prime power	40KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	1000kg
1.6	Overall dimension	1500×750×1320mm (just for reference)
2.Main technical data of engine
4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.2	Model	4BTA3.9-GM47
2.3	Prime power	47KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 4 cylinder in line
2.6	Cooling method	By radiator
2.7	Bore/Stroke	102×120 mm
2.8	Displacement	3.9 L
2.9	Starting method	Electric
2.10	Fuel consumption	213g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-40-4
3.3	Prime power	40KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H

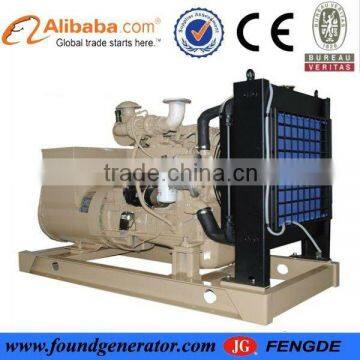

Photo for generator
