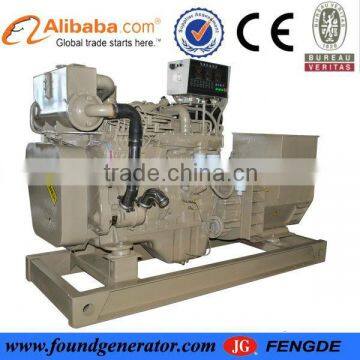

Top quality 75kw self running generator

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

self running generator :
1.Reliable quality
2.One year warranty
3.CCS approved

We are the top VIP supplier on Alibaba authorized by famous certification authority-CCS

Genset general feature:

1.Generator can be used as Main Marine generator , Marine emergency generator or Harbor generator

2.CCS,BV approved

3.Cooled by heat exchanger / radiator

4.Adopt Cummins Engine

5.Marathon single-shaft alternator standard , Stamford alternator is optional

6.Parallel connection: Two and more normal marine generating sets can transfer loading without stoping ,

and can realize parallel.

7.Standard SAE coupling the engine and alternator

8.With efficiency anti-vibration devices

9.Cold rolled steel one time molded base

10.High reliability , low use and maintenance cost

1.Main technical data of gensets
1.1	Model	CCFJ75JW
1.2	Prime power	75KW
1.3	Prime voltage	230/400V
1.4	Speed	1500 rpm
1.5	Weight	1250kg
1.6	Overall dimension	1850×820×1350mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	CUMMINS
2.2	Model	6BTA5.9-GM100
2.3	Prime power	100KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	102×120 mm
2.8	Displacement	5.9 L
2.9	Starting method	Electric
2.10	Fuel consumption	212g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	MARATHON
3.2	Model	MP-H-75-4
3.3	Prime power	75KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	230V/400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
