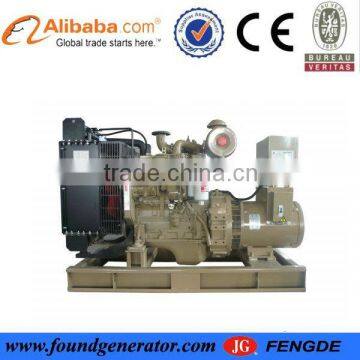

80% Discount CE approved generator 30kv
- Shanghai Port
- T/T D/P D/A Credit Card
You May Like
-
80% Discount 100kw permanent magnet generator with CE&ISO
-
20% Discount Hot sale CE approved electric generator without fuel by famous manufacturer
-
CE Approved OEM famous manufacturer 48v dc generator for sale
-
30% off weatherproof generator approved by BV
-
china manufacturer 12 cylinders 700kva low noise type power generation
-
20% off Top factory sale diesel generator set price of 50kva
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JG | |
| Model Number | JGC30GF | Output Type | AC Three Phase | |
| Speed | 1500rpm | Frequency | 50Hz | |
| Rated Power | 30Kw | Rated Voltage | 400V | |
| Rated Current | 54A |
Product Description
Specifications
generator 30kv1.ISO9001:2008 certificate
2.75dB at the distance of 7m
3.AMF&ATS
4.1 year warranty
We are the top VIP supplier on Alibaba ,
authorized by famous certification authority-BV ( Bureau Veritas )
The technical specification is contract’s accessories. The generating set that we provided according to it.
1.Main technical data of gensets | ||
1.1 | Model | JG30GF |
1.2 | Prime power | 30KW/37.5KVA |
1.3 | Prime voltage | 230/400V |
1.4 | Speed | 1500 rpm |
1.5 | Weight | 850kg |
1.6 | Overall dimension | 1850×850×1300mm (just for reference) |
2.Main technical data of engine | ||
2.2 | Model | 4BT3.9-G2 |
2.3 | Prime power | 36KW/45KVA |
2.4 | Governor type | Electronic |
2.5 | Configuration | 4 cycle , 4 cylinder in line |
2.6 | Air Intake System | Turbocharged |
2.7 | Bore/Stroke | 102×120 mm |
2.8 | Displacement | 3.9 L |
2.9 | Starting method | Electric |
2.10 | Compression ratio | 16.5:1 |
2.11 | Fuel consumption | 216g/kw.h |
3. Main technical data of alternator | ||
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation. | ||
3.1 | Brand | MARATHON |
3.2 | Model | GM-30-4 |
3.3 | Prime power | 30KW/37.5KVA |
3.4 | Configuration | Brushless , self-exciting |
3.5 | Prime voltage | 230V/400V |
3.6 | Frequency | 50 HZ |
3.7 | Power factor | 0.8(lagging) |
3.8 | Phase/wire | 3 phase 4 wires |
3.9 | Isolation | H |
4. Protective function of operation |
Ÿ Low oil pressure alarm and shutdown
Ÿ High temperature alarm and shutdown
Ÿ Over speed alarm and shutdown
5. Generator standard configuration and accessory |
Ÿ Engine
Ÿ Alternator
Ÿ AVMS suspension system
Ÿ Seat: Satisfactory shockproof system for installation of alternator, engine and cooling system
Ÿ Exhaust silencer for industry use, corrugated pipe and elbow required for installation
Ÿ Spare part list and user manual
6. Warranty |
Ÿ Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
7.Certificate & Document |
ŸAlternator
operation and maintenance manual 1PC
Ÿ Engine
operation and maintenance manual 1PC
Ÿ Generator
Overall drawings of the set 1PC
Electrinic system drawing 1PC
Bench test 1PC
Packing list 1PC
