Home > Products > New Products > High reliability factory sell CE RoHS constant voltage waterproof single output 12a 180w led driver 110v dc power supply

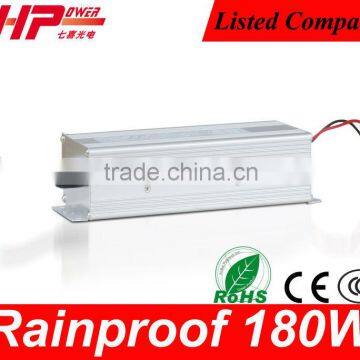

High reliability factory sell CE RoHS constant voltage waterproof single output 12a 180w led driver 110v dc power supply

FOB Price

US$ 10.9 - 10.9 / Set

1 Set(Min. Order)

Port Guangzhou port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HPower
Model Number	HA-180W-15V	Output Power	101 - 200W
Output Type	Single	Input Voltage	220V
Output Voltage	15V	Output Frequency	N/A
Output Current	12A

Product Description

Specifications

110v dc power supply 12a 180w
CCC CE RoHS
Constant voltage
Input voltage: 90~132VAC/180~264VAC
High efficiency,reliability

Product Description

15v power supply description:

Product name:HA-180W-15V 15v power supply

Rated power: 180W

Output voltage: DC15V

Water-proof

Over voltage protection: 16.5~20.25V

Over load protection: 110~115% rated output power

Ripple & Noise (max.): 150mVp-p

Over temperature protection: 100°C±5°

Trade Mark: HPower

Business type: Manufacturer/Factory

Certificates: CE, RoHS, CCC

Warranty: 2 years

110v dc power supply features:

v 8 hrs and 100% full load bult-in test

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Universal AC input/Full range

v Bult-in constant current limiting circuit

v Forced air cooling by built-in DC ball bearing fan

v LED indicator for power on

110v dc power supply details:

180w Series, include output 5v, 12v, 15v, 24v and 36v.

Model		HA-180W-5V	HA-180W-12V	HA-180W-15V	HA-180W-24V	HA-180W-36V
Output	DC Voltage	5V	12V	15V	24V	36V
	Rated Current	36A	15A	12A	7.5A	5A
	Current Range	0~36A	0~15A	0~12A	0~7.5A	0~5A
	Rated Power	180W	180W	180W	180W	180W
	Ripple & Noise (max.)	100mVp-p	100mVp-p	150mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	4.75~5.5V	11.4~13.2V	14.3~16.5V	22.8~26.4V	34.2~39.6V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%
	Line Regulation	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	Load Regulation	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%
	Setup,Rise time	600ms,30ms at full load
	Hold Up Time(Typ.)	13ms at full load
Input	Voltage Range	90~132VAC/180~264VAC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	82%	82%	85%	87%	90%
	AC Current (Typ.)	5A/115VAC 3A/230VAC
	Inrush Current (Typ.)	20A/115VAC 40A/230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~115% rated output power
	Over Load	Protection type: Shut down O/P,re-power on to recover
	Over Voltage	5.5~6.75V	13.2~16.2V	16.5~20.25V	26.4~32.4	39.6~48.6V
	Over Voltage	Protection type: Shut down O/P,re-power on to recover
	Over Temperature	100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
	Over Temperature	Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment	Working Temperature	-20~+40°C
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	10000hrs MIL-HDBK-217F (25°C)
	Dimension	1969050mm (LWH)
	Packing	0.67Kg; 28pcs/20.9Kg/1.88CUFT
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. Derating may be needed under low input voltages.

110v dc power supply structural drawing(Unit::mm):

110v dc power supply derating curve:

110v dc power supply applications:

1. LED display, led strip, nixie tube, street light, lamp;

2. Electrical equipment, Instrumentation;

3. LCD, LED, CCTV camera;

4. Digital and electronic products;

5. Building lighting decoration;

6. Communications and security products.
