Home > Products > New Products > Constant voltage 60w 12v dc input atx power supply with CE RoHS

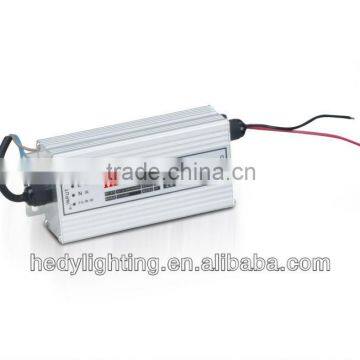

Constant voltage 60w 12v dc input atx power supply with CE RoHS

FOB Price

USD $6 - $12 / Set

1 Set(Min.Order)

Port Guangzhou port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HPower
Model Number	HA-60W-12V	Output Power	51 - 100W
Output Type	Single	Input Voltage	220V
Output Voltage	12V	Output Frequency	N/A
Output Current	5A

Product Description

Specifications

60w 12v dc input atx power supply
8 Hrs and 100% full load burn-in test
2 years warranty
Short circuit protection
CE RoHS

60w 12v dc input atx power supply description:

Product name: 60w 12v dc input atx power supply

Rated power: 60W

Output voltage: DC12V

Rainproof

Ripple & Noise (max.): 100mVp-p

Over load protection: 110~115% rated output power

Over voltage protection: 13.2~16.2V

Over temperature protection: 100°C±5°

Business type: Manufacturer/Factory

Trade Mark: HPower

Certificates: CE, RoHS, CCC

Warranty: 2 years 60w 12v dc input atx power supply features:

v Universal AC input/Full range

v High efficiency up to 90%

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Suitable for dry/damp/wet locations

v 8 hrs and 100% full load bult-in test

v Bult-in constant current limiting circuit

v Compliance to worldwide safety regulations for lighting

v Suitable for LED lighting and moving sign applications

60w dc input atx power supply details:

60w Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.

Model		HA-60W-3.3V	HA-60W-5V	HA-60W-12V	HA-60W-15V	HA-60W-24V	HA-60W-36V
Output	DC Voltage	3.3V	5V	12V	15V	24V	36V
	Rated Current	18A	12A	5A	4A	2.5A	1.5A
	Current Range	0~18A	0~12A	0~5A	0~4A	0~2.5A	0~1.5A
	Rated Power	59.4W	60W	60W	60W	60W	54W
	Ripple & Noise (max.)	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	3.14~3.63V	4.75~5.5V	11.4~13.2V	14.3~16.5V	22.8~26.4V	34.2~39.6V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%
	Line Regulation	±1.0%	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	Load Regulation	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%
	Setup,Rise time	600ms,30ms at full load
	Hold Up Time(Typ.)	13ms at full load
Input	Voltage Range	90~132VAC/180~264VAC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	83%	82%	85%	86%	88%	90%
	AC Current (Typ.)	3A/115VAC 2A/230VAC
	Inrush Current (Typ.)	20A/115VAC 40A/230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~115% rated output power
	Over Load	Protection type: Shut down O/P,re-power on to recover
	Over Voltage	3.63~4.46V	5.5~6.75V	13.2~16.2V	16.5~20.25V	26.4~32.4	39.6~48.6V
	Over Voltage	Protection type: Shut down O/P,re-power on to recover
	Over Temperature	100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
	Over Temperature	Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment	Working Temperature	-20~+60°C
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	10000hrs MIL-HDBK-217F (25°C)
	Dimension	1377040mm (LWH)
	Packing	0.32Kg; 48pcs/17.7Kg/1.79CUFT
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. Derating may be needed under low input voltages.

60w 12v dc input atx power supply structural drawing(Unit:mm):

60w 12v dc input atx power supply derating curve:

60w 12v dc input atx power supply applications:

1. LED display, led strip, nixie tube, street light, lamp;

2. Electrical equipment, Instrumentation

3. LCD, LED, CCTV camera;

4. Digital and electronic products;

5. Communications and security products;

6. Building lighting decoration.

Our switch power supply show room HEDY:

Our switch power supply workshop HEDY:

Switch power supply packing & delivery

Lead time: 7-15 days

Delivery method:

ü Express service: FedEx/DHL/UPS/TNT/EMS

ü Air transportation: factory to airport

ü Ocean shipping: factory to port
