Home > Products > New Products > CCC CE RoHS best quality single output rainproof ac dc regulated 60w 4a 15v constant voltage LED driver

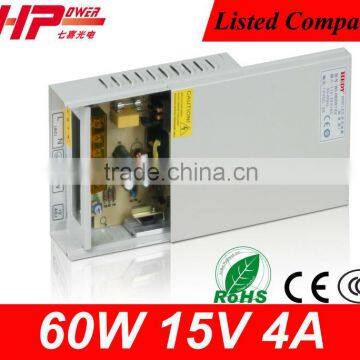

CCC CE RoHS best quality single output rainproof ac dc regulated 60w 4a 15v constant voltage LED driver

FOB Price

US$ 5.33 - 5.33 / Set

1 Set(Min. Order)

Port Guangzhou port led driver
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HPower
Model Number	HL-60W-15V	Output Power	51 - 100W
Output Type	Single	Input Voltage	220V
Output Voltage	15V	Output Frequency	N/A
Output Current	4A

Product Description

Specifications

Constant voltage LED driver 15v 4a
CE RoHS rainproof
Constant voltage
Input voltage: 90~132VAC/180~264VAC
High efficiency

Product Description

Welcome to our factory!

Constant voltage LED driver description:

Product name:HL-60W-15V constant voltage LED driver

Rated power: 60W

Output voltage: DC15V

Rain-proof

Over voltage protection: 16.5~20.25V

Over load protection: 110~115% rated output power

Ripple & Noise (max.): 150mVp-p

Over temperature protection: 100°C±5°

Trade Mark: HPower

Business type: Manufacturer/Factory

Certificates: CE, RoHS, CCC

Warranty: 2 years

Constant voltage LED driver features:

v 8 hrs and 100% full load bult-in test

v Protection: Short circuit/Overload /Over Voltage/Over Temperature

v Universal AC input/Full range

v Bult-in constant current limiting circuit

v Forced air cooling by built-in DC ball bearing fan

v LED indicator for power on

Constant voltage LED driver details:

60w Series, include output 3.3v, 5v, 12v, 15v, 24v and 36v.

Model		HL-60W-3.3V	HL-60W-5V	HL-60W-12V	HL-60W-15V	HL-60W-24V	HL-60W-36V
Output	DC Voltage	3.3V	5V	12V	15V	24V	36V
	Rated Current	18A	12A	5A	4A	2.5A	1.5A
	Current Range	0~18A	0~12A	0~5A	0~4A	0~2.5A	0~1.5A
	Rated Power	59.4W	60W	60W	60W	60W	54W
	Ripple & Noise (max.)	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	3.14~3.63V	4.75~5.5V	11.4~13.2V	14.3~16.5V	22.8~26.4V	34.2~39.6V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%
	Line Regulation	±1.0%	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	Load Regulation	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%
	Setup,Rise time	600ms,30ms at full load
	Hold Up Time(Typ.)	13ms at full load
Input	Voltage Range	90~132VAC/180~264VAC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	85%	85%	86%	85%	88%	90%
	AC Current (Typ.)	5A/115VAC 3A/230VAC
	Inrush Current (Typ.)	20A/115VAC 40A/230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~115% rated output power
	Over Load	Protection type: Shut down O/P,re-power on to recover
	Over Voltage	3.63~4.46V	5.5~6.75V	13.2~16.2V	16.5~20.25V	26.4~32.4	39.6~48.6V
	Over Voltage	Protection type: Shut down O/P,re-power on to recover
	Over Temperature	100°C±5°C(3.3V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others
	Over Temperature	Protection type: Shut down O/P,recovers automatically after temperature goes down
Environment	Working Temperature	-20~+60°C
	Working Humidity	20~90% RH Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	10000hrs MIL-HDBK-217F (25°C)
	Dimension	16010550mm (LWH)
	Packing	0.46Kg; 40pcs/20Kg/1.7CUFT
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.
	4. Derating may be needed under low input voltages.

Constant voltage LED driver structural drawing(Unit::mm):

Constant voltage LED driver derating curve:

Constant voltage LED driver applications:

1. LED display, led strip, nixie tube, street light, lamp;

2. Electrical equipment, Instrumentation;

3. LCD, LED, CCTV camera;

4. Digital and electronic products;

5. Building lighting decoration;

6. Communications and security products.

Our constant voltage LED driver show room:

Our constant voltage LED driver workshop:

Constant voltage LED driver packing & delivery

Lead time: 7-15 days

Delivery method:

ü Express service: FedEx/DHL/UPS/TNT/EMS

ü Ocean shipping: factory to port

ü Air transportation: factory to airport
