Home > Products > New Products > High-performance diesel filter for mining industry with polymer membrane technology

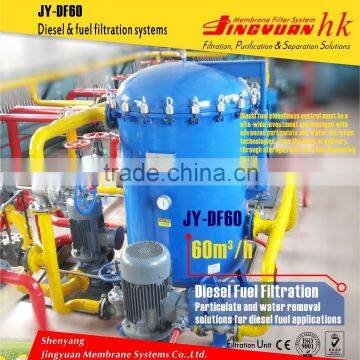

High-performance diesel filter for mining industry with polymer membrane technology

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Dalian Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Membrane filter
Structure	Other, Polymer membrane 3D structure	Place of Origin	Liaoning, China
Brand Name	Jingyuan	Model Number	JY-DF60
Weight	632KG	Dimension(LWH)	126011502230mm
Certification	ISO9001:2008	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Excellent performance:
•New polymer membrane filtration technology
•Selectivity characteristics of polymer membrane is core technology.
•Oil-water separating is easy.
•High precision and deep filtration
•Guarantee the cleanness index of diesel oil
•Improve the efficiency of the engine
•Prolong engine service life
•The cost of filtration is low

Technical Parameters	1	Model Number	JY-DF60
	2	Working Pressure	0.2~0.35Mpa
	3	Flow Rate	60m3/h
	4	Filtration Precision	2,5,10,15,25μm
	5	Filtration Material	HDPE,PA
	6	Applicative Oil	Light Diesel Oil
	7	Chemical Resistance	Widely Chemical Compatibility
	8	Type of Filter element	J30-970S
	9	End Flanges	DN80~DN125
	10	Dimension	1260×1150×2230mm
	11	Weight	632KG
	12	Service Life of Filter Element	2~3 Year
	13	Warranty for Main Engine	1 Year
Functional Characteristics	1	High flow diesel purification filter
	2	Minimum mechanical flow resistance
	3	Polymer membrane filter
	4	Deep filtration
	5	High interception rate
	6	Oil-water separation
	7	Quick opening lid, safely and quickly, easy to maintain
	8	Made of high quality thick steel plate, anti-corrosion treatment
	9	Stainless steel tanks can be customized
	10	Tank passes pressure test
	11	Filter can be back flushed and maintained
	12	Convenient operation of the drain valve
	13	Convenient repair and maintenance
	14	Low operating cost
	15	Design life is more than 20 years (except for filter element)
Principle	Selectivity characteristic is to say, the oil molecules will pass and water molecules or impurities will be intercepted, so that the oil and water can be separated.
Application	Mining, construction, large generating units, engineering machinery, oil refinery, oil depot, dock, railway locomotive gas stations, military industry, electric power, oil production and other industries in Asia, South America, Africa and Middle East.
Why do we filter diesel?	90% of the failure problem of diesel engine is due to dirt and moisture in the diesel. After multiple storage and transportation, the purity of the product will decline. So filtering out the pollutants and water is necessary to restore the purity of the product. Clean diesel makes fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~3 times.

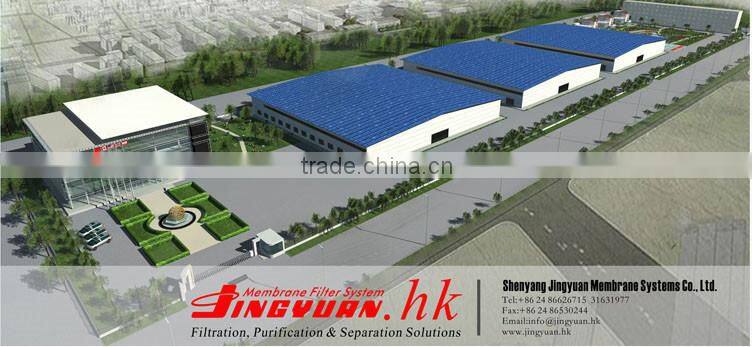

Company information

Shenyang Jingyuan Membrane Co.,Ltd. is a professional and innovative membrane filter manufacturer,specialized in clean diesel filter technologh,special membrane production technology,supplying with high performance and large flow of diesel purification filters and devices, industrial oil purification device, high proformance military filtration device. we are particularly skilled in research and application of membrane filtration materials, strict product quality control. we uphold the proprietary technology and creative and offer you qualified products,competitive price and professional services. we sincerely hope to promote and develop the business with our friends on the basis of equality and mutual benefit. Philosophy:Focus on research and development,continously innovate product,control quality in strict,base on equality and mutual benefit.

Packaging & shipping

1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.

2>Appointed shipping company could be used in shipment.

3>Whole process monitoring insures the safety of goods unitl arrival .

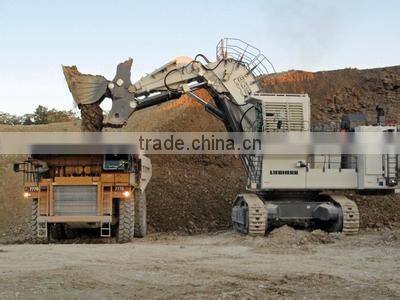

Application in mining industry
