Oil Cleaning Systems / Purification Systems/ Lube Oil Purifier, Oil Conditioner

 products  introductions

                               Oil Cleaning Systems / Purification Systems/ Lube Oil Purifier, oil conditioner

  Features:

New polymer membrane filtration technology

•Selectivity characteristics of polymer membrane is core technology.

•Oil-water separating is easy.

•High precision and deep filtration

•Guarantee the cleanness index of industrial oil

•Improve the efficiency of the engine

•Prolong engine service life

•The cost of filtration is low

• Small volume

 Superiority:

Our machine used the newest membrane filter technology. the membrane element can wash and use again and again. so it can save much cost. membrane element has The characteristics of the oil drain. water and impurity can Successful intercept. and the clean oil pass . our precision can reach 2 micron. a hair is 80 micron, so you can think our precision , it is very high.

Function:

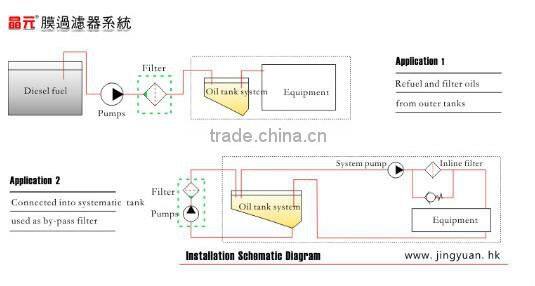

Special filter pump, extract the oil from the system tank,first cross a Magnetic filter and strainer,make the oil cross jingyuan

membrane filter element,The oil from the outer edge of the membrane filter into,Clean oil flow from the center of the membrane

 filter hole,Impurities and moisture trapped on the outer edge of the membrane filter

Technical Parameters:

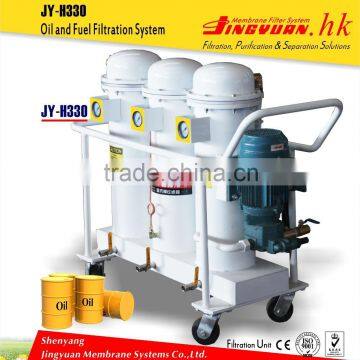

 1.Model Type: JY-H130

2.Flow Rate: 30~40 L/min

3.Filtration System:

(1Polymer Membrane Filter Elements (Can be used repeatedly after washing) J22-401L--------------------10μm J22-401H----------------------5μm

 (2)Filter Element Quantity: 36 Pieces (3Function: Remove impurity particles, colloid and water (4)Working Pressure: 0.2~0.35 Mpa (5)Filtration Level: 3 (6)Service life: 2~3 Years or longer

4.Filtration Precision:  (1)Range: 2,5,10,15,25 μm (2)Standard: 5~10 μm

5.Mouth: Standard: DN20 or According to Requirements

6.Security: With Pressure Safety Valve

7.Temperature: Working Temperature: -10~70 ºC

8. Dimension: 450*700*890mm

9.Weight:45KG

10.Anti-hazard Classification: Grade 2

Application:



1>Durable Plywood Case packaging suitable for long distance ocean/train transportation.

2>Appointed shipping company could be used in shipment.

3>Whole process monitoring insures the safety of goods unitl arrival.

Our services---Term of Warranty:

1. One year with spare parts and service.

2. Engineers available to service machinery for overseas.

Tel:0086 18742486458

Skype:ivyqian25

Viber/what's up:0086 18742486458
